製品画像

コア拡散

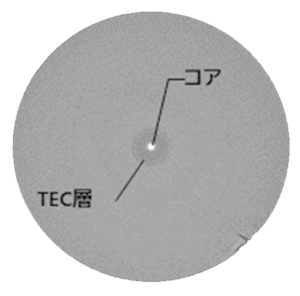

TEC（Thermally-diffused Expanded Core）ファイバは、「熱拡散コア技術」により、融着時の熱でコア（モードフィールド径）が拡大するシングルモード光ファイバです。

製品一覧

Coating material	Polymide	UV curable resin				UV curable resin / Polyester elastomer
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm 82%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

Wevelength band
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name.
(e.g., SM15-PS-U25D-H)

TEC SM ファイバ	TEC PANDA ファイバ
TEC13-15-U25HT-M4	TEC13-15-PS-U25HT-M4
