TEC SM fiber
with heat resistant coating
Fujikura's TEC SM fibers with heat resistant coating can operate in a wide range of temperature between -40 ℃ and +150 ℃.The fibers have a structure suitable for fusion splicing and optical connectors based on fiber design and manufacturing technologies developed over many years. Thermally-diffused Expanded Core (TEC) technology is applied to increase the mode field diameter by the heat generated during fusion bonding.
Features
・The heat resistance has been improved compared with conventional acrylate coatings, and can be used in a wide temperature range of -40 ˚C to +150 ˚C.
・Thermally-diffused Expanded Core technology is applied to increase the mode field diameter by the heat generated during fusion bonding.
・Suitable for bonding with silicon photonics devices.

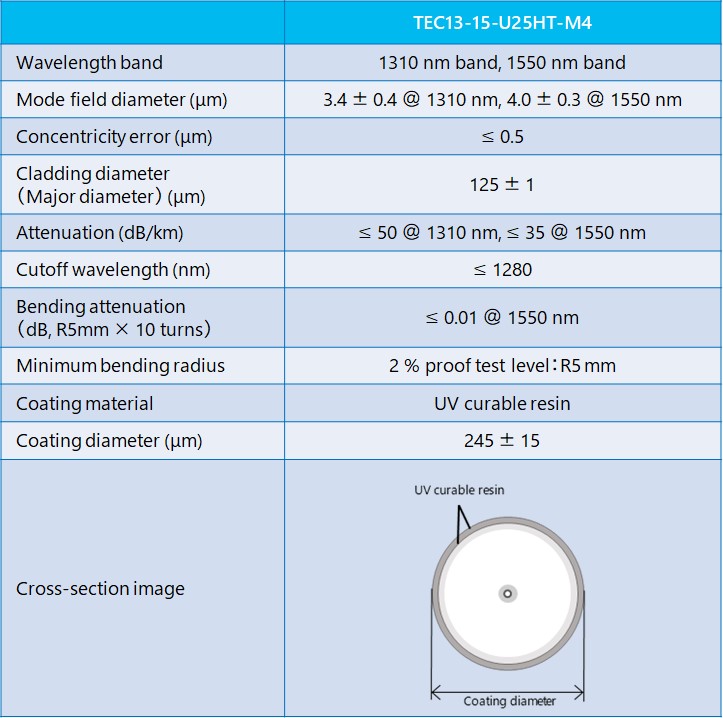

Specifications
| TEC13-15-U25HT-M4 | |
| Wavelength band | 1310 nm band, 1550 nm band |
| Mode field diameter (μm) | 3.4 ± 0.4 ＠ 1310 nm, 4.0 ± 0.3 ＠ 1550 nm |
| Concentricity error (μm) | ≤ 0.5 |
| Cladding diameter （Major diameter） (μm) | 125 ± 1 |
| Attenuation (dB/km) | ≤ 50 ＠ 1310 nm, ≤ 35 ＠ 1550 nm |
| Cutoff wavelength (nm) | ≤ 1280 |
| Bending attenuation （dB, R5mm × 10 turns） | ≤ 0.01 ＠ 1550 nm |
| Minimum bending radius | 2 % proof test level：R5 mm |
| Coating material | UV curable resin |
| Coating diameter (μm) | 245 ± 15 |

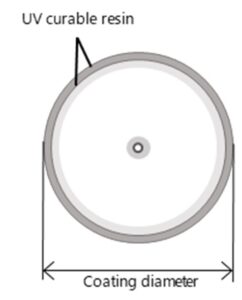

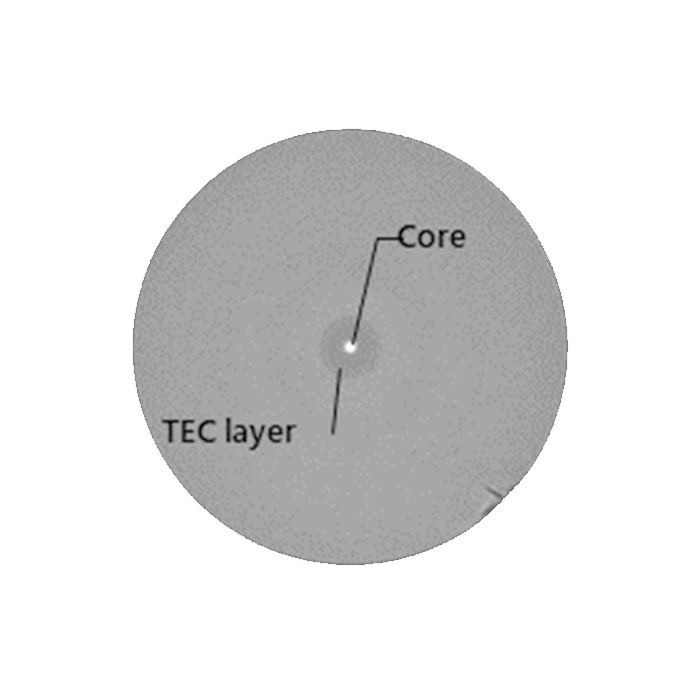

Cross-section image |  |
