Polyimide coated
PANDA

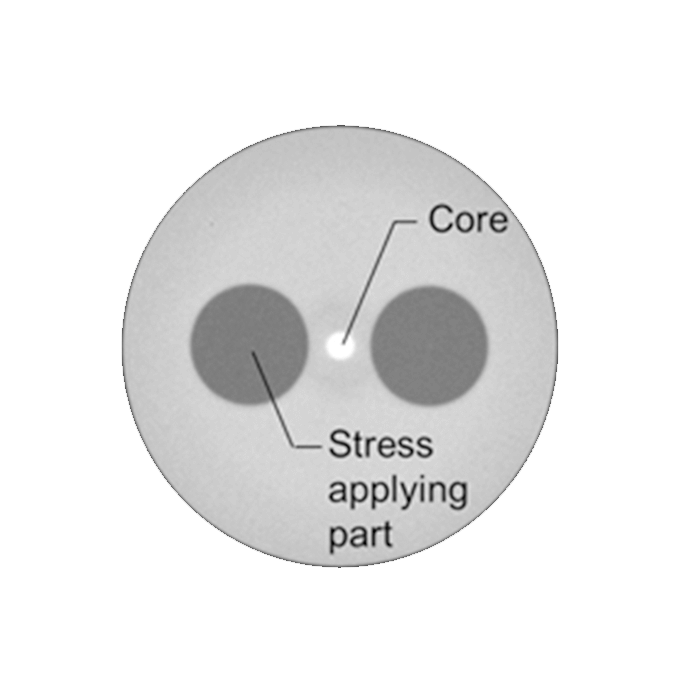

Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. This PANDA fiber has a polyimide coating, making it usable in a wide temperature range between -60 ˚C and +300 ˚C.
Features
・Polyimide coated PANDA usable in wide range of temperature between -60 and +300℃
・Low polarization crosstalk and low attenuation
・RoHS compliant

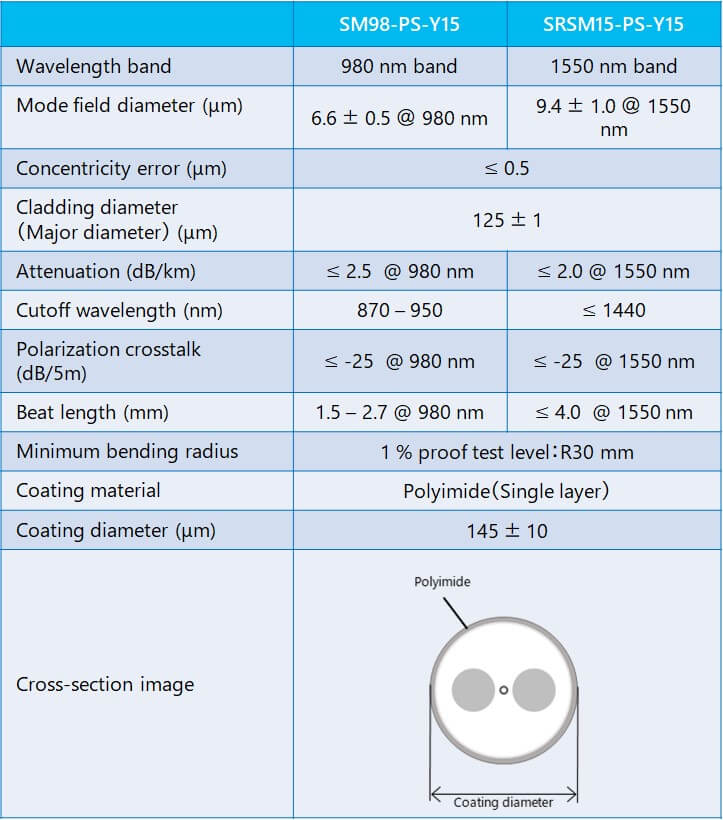

Specifications
| SM98-PS-Y15 | SRSM15-PS-Y15 | |
| Wavelength band | 980 nm band | 1550 nm band |
| Mode field diameter (μm) | 6.6 ± 0.5 ＠ 980 nm | 9.4 ± 1.0 ＠ 1550 nm |
| Concentricity error (μm) | ≤ 0.5 | |
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | |
| Attenuation (dB/km) | ≤ 2.5 @ 980 nm | ≤ 2.0 @ 1550 nm |
| Cutoff wavelength (nm) | 870 – 950 | ≤ 1440 |
| Polarization crosstalk (dB/5m) | ≤ -25 @ 980 nm | ≤ -25 @ 1550 nm |
| Beat length (mm) | 1.5 – 2.7 @ 980 nm | ≤ 4.0 @ 1550 nm |
| Minimum bending radius | 1 % proof test level：R30 mm | |
| Coating material | Polyimide（Single layer） | |
| Coating material | 145 ± 10 | |

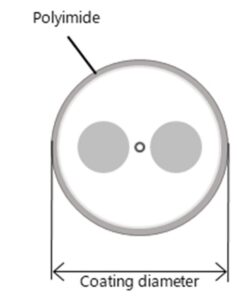

Cross-section image |  | |
