ITU-T G654.E
FutureGuide™- HSC-125
FutureGuide™HSC-125 boasts significantly reduced attenuation, providing greater network-designing flexibility. This offers several advantages, including support for advanced modulation formats, longer network spans, and improved OSNR gain.
Fujikura has released a leading-edge cut-off shifted fiber that is optimized to digital-coherent transmission in long-haul terrestrial networks – FutureGuide™-HSC-125, which fully complies with ITU-T G.654.E (issued in March 2020).
FutureGuide™HSC-125 has extremely reduced attenuation which enables to obtain more network-designing margin, thus allowing many advantages such as advanced modulation format, extension of network spans, improvement of OSNR gain etc.
Another noteworthy feature of FutureGuide™HSC-125 is specially optimized MFD (Effective area) which suppresses signal degradation owing to reduced power density in a fiber core. .
As the combination of the above features, FutureGuide™-HSC-125 will provide various benefits for terrestrial long-haul networks such as higher transmission capacity, network system design flexibility and cost-effective implementation.

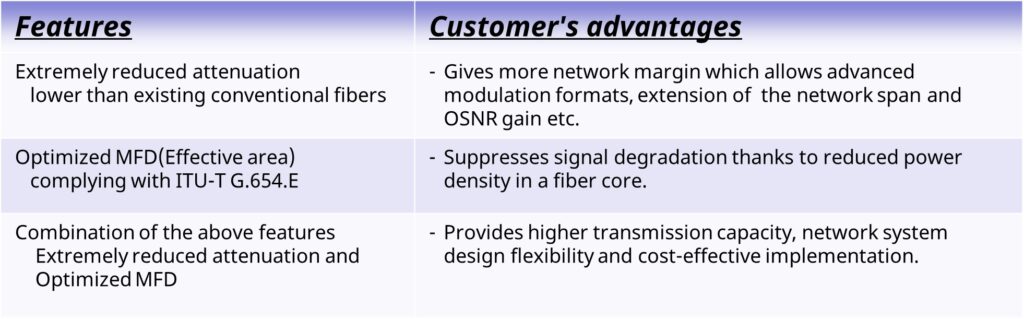

Features
Extremely reduced attenuation
lower than existing conventional fibers
Optimized MFD(Effective area)
complying with ITU-T G.654.E
Combination of the above features
Extremely reduced attenuation and
Optimized MFD
Customer’s advantages
– Gives more network margin which allows advanced modulation formats, extension of the network span and OSNR gain etc.
– Suppresses signal degradation thanks to reduced power density in a fiber core.
– Provides higher transmission capacity, network system design flexibility and cost-effective implementation.

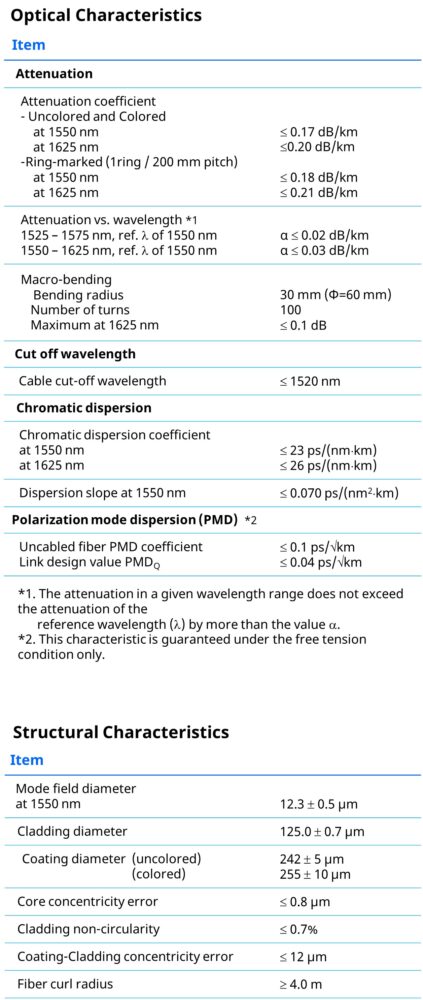

Product Characteristics
* This document is published for your reference purpose only and the specifications for commercial purpose will be issued upon agreement with customers.
