850 nm band
PANDA
Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. This PANDA fiber is compatible with the 850 nm band, which corresponds to near-infrared light.
Features
・Suitable for 850 nm band
・Low polarization crosstalk and low attenuation
・RoHS compliant
Specifications

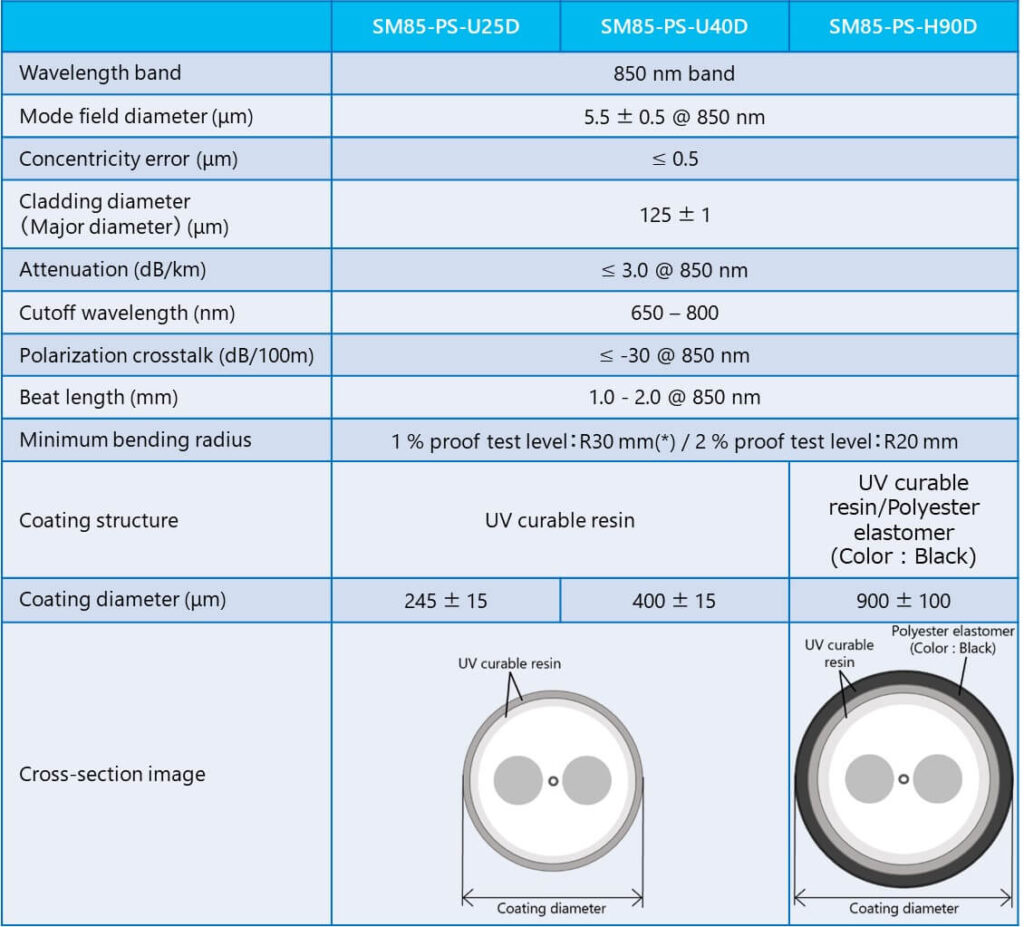

| SM85-PS-U25D | SM85-PS-U40D | SM85-PS-H90D | |
| Wavelength band | 850 nm band | ||
| Mode field diameter (μm) | 5.5 ± 0.5 @ 850 nm | ||
| Concentricity error (μm) | ≤ 0.5 | ||
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | ||
| Attenuation (dB/km) | ≤ 3.0 @ 850 nm | ||
| Cutoff wavelength (nm) | 650 – 800 | ||
| Polarization crosstalk (dB/100m) | ≤ -30 @ 850 nm | ||
| Beat length (mm) | 1.0 – 2.0 @ 850 nm | ||
| Minimum bending radius | 1 % proof test level：R30 mm(*) / 2 % proof test level：R20 mm | ||
| Coating structure | UV curable resin | UV curable resin/Polyester elastomer (Color : Black) | |
| 被覆外径 (μm) | 245 ± 15 | 400 ± 15 | 900 ± 100 |

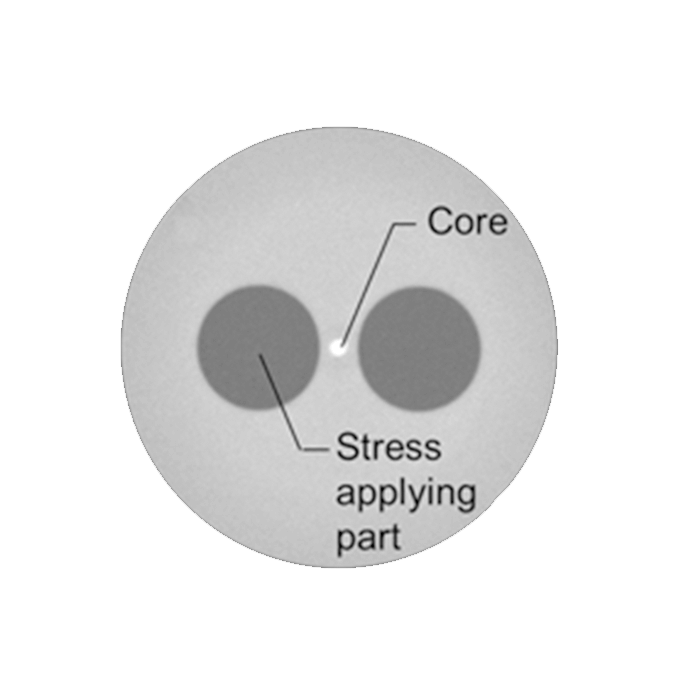

Cross-section image |  |  | |
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name. (e.g., SM85-PS-U25D-H)
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name.
(e.g., SM85-PS-U25D-H)
