480 nm band
PANDA

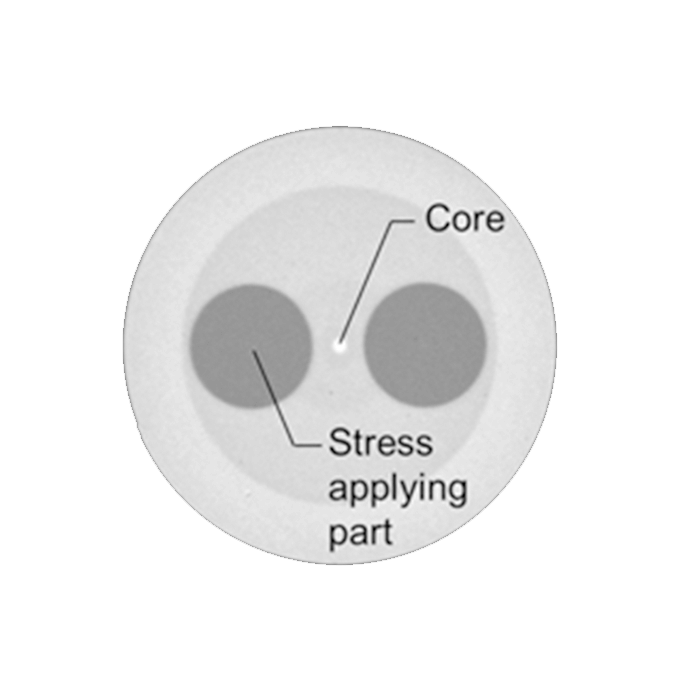

Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. This PANDA fiber is compatible with 480 nm band (blue-green light).
Features
・Suitable for 480 nm band
・Low polarization crosstalk and low attenuation
・High power light transmission with pure silica core
・RoHS compliant

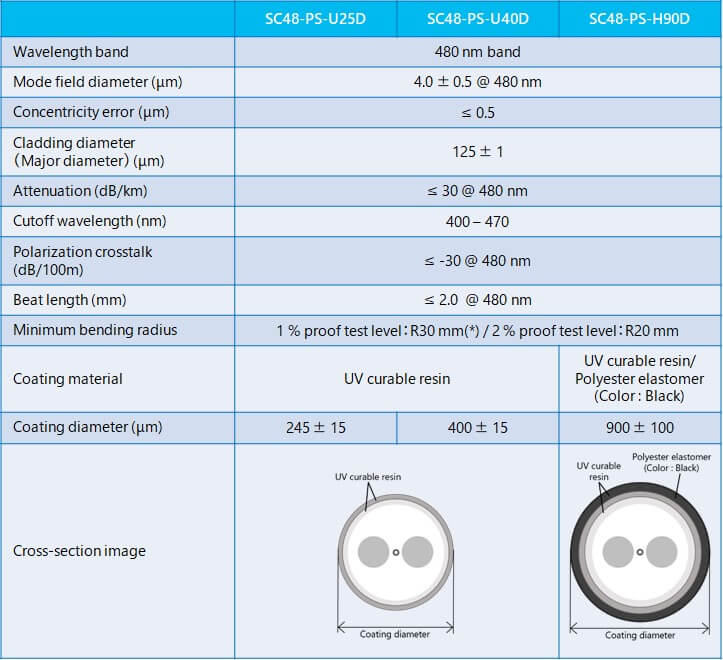

Specifications
| SC48-PS-U25D | SC48-PS-U40D | SC48-PS-H90D | |
| Wavelength band | 480 nm band | ||
| Mode field diameter (μm) | 4.0 ± 0.5 @ 480 nm | ||
| Concentricity error (μm) | ≤ 0.5 | ||
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | ||
| Attenuation (dB/km) | ≤ 30 @ 480 nm | ||
| Cutoff wavelength (nm) | 400 – 470 | ||
| Polarization crosstalk (dB/100m) | ≤ -30 @ 480 nm | ||
| Beat length (mm) | ≤ 2.0 @ 480 nm | ||
| Minimum bending radius | 1 % proof test level：R30 mm(*) / 2 % proof test level：R20 mm | ||
Coating material | UV curable resin | UV curable resin/ Polyester elastomer (Color : Black) | |
| Coating diameter (μm) | 245 ± 15 | 400 ± 15 | 900 ± 100 |

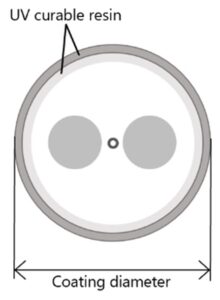

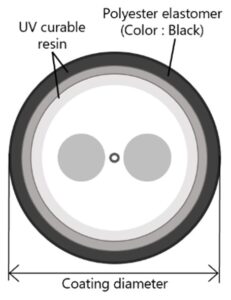

Cross-section image |  |  | |
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name. (e.g., SC48-PS-U25D-H)
