1550 nm band
bend insensitive
PANDA
(Bending radius 7.5 mm)
Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. The minimum bending radius of R7.5 mm is a feature of this PANDA fiber.
Features
・Suitable for 1550 nm band
・Small bending radius (R7.5 mm)
・Low polarization crosstalk and low attenuation
・RoHS compliant

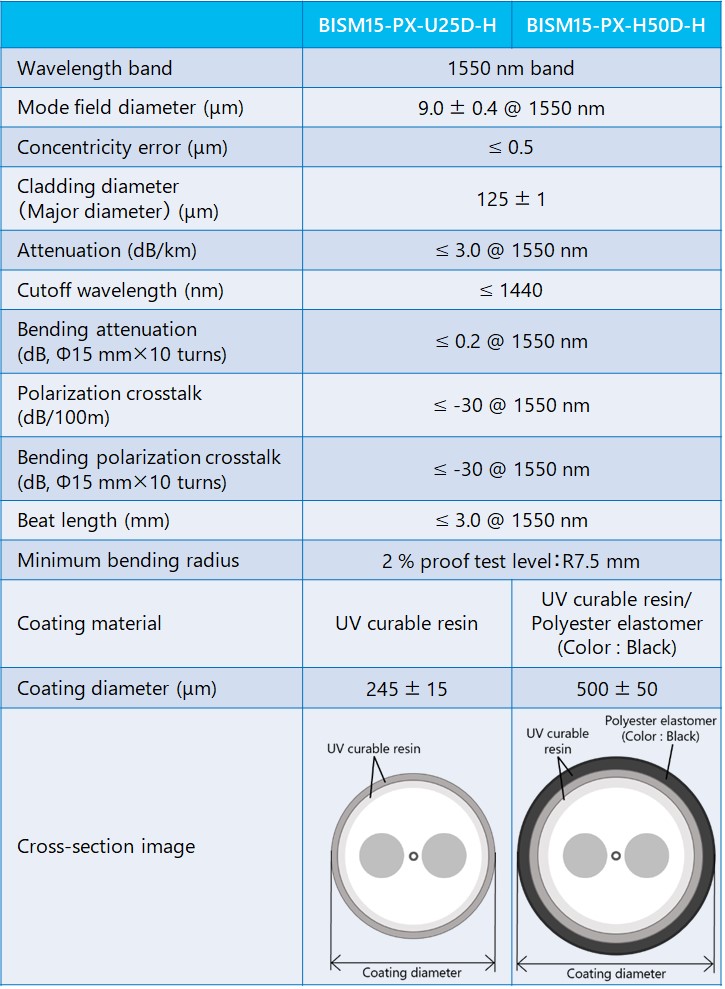

Specifications
| BISM15-PX-U25D-H | BISM15-PX-H50D-H | |
| Wavelength band | 1550 nm band | |
| Mode field diameter (μm) | 9.0 ± 0.4 @ 1550 nm | |
| Concentricity error (μm) | ≤ 0.5 | |
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | |
| Attenuation (dB/km) | ≤ 3.0 @ 1550 nm | |
| Cutoff wavelength (nm) | ≤ 1440 | |
| Bending attenuation (dB, Φ15 mm×10 turns) | ≤ 0.2 @ 1550 nm | |
| Polarization crosstalk (dB/100m) | ≤ -30 @ 1550 nm | |
| Bending polarization crosstalk (dB, Φ15 mm×10 turns) | ≤ -30 @ 1550 nm | |
| Beat length (mm) | ≤ 3.0 @ 1550 nm | |
| Minimum bending radius | 2 % proof test level：R7.5 mm | |
| Coating material | UV curable resin | UV curable resin/ Polyester elastomer (Color : Black) |
| Coating diameter (μm) | 245 ± 15 | 500 ± 50 |

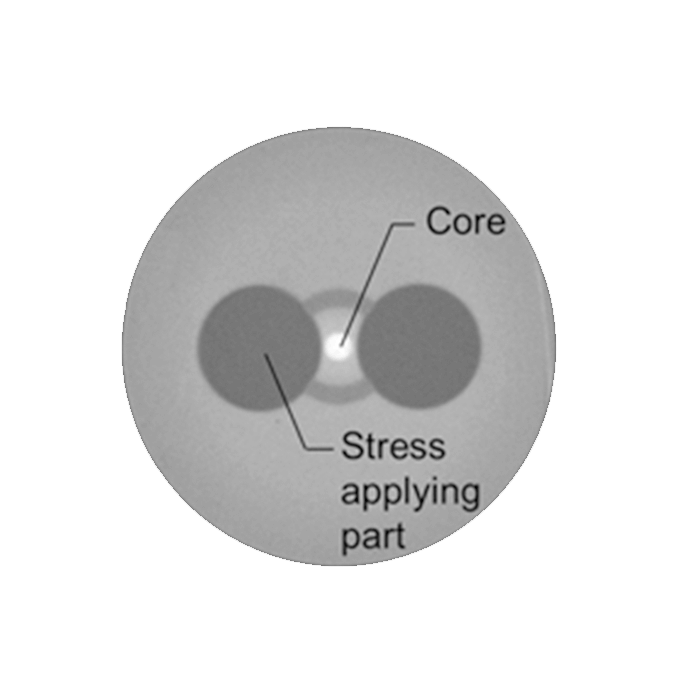

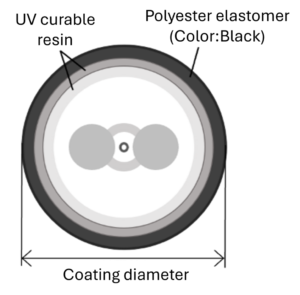

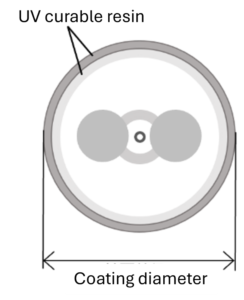

Cross-section image |  |  |
