1400 nm band
PANDA

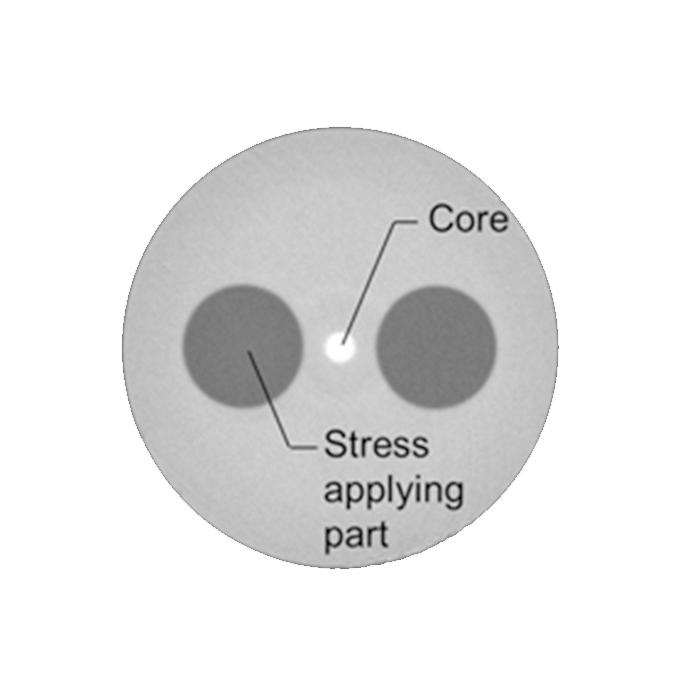

Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. This PANDA fiber is compatible with the 1400 nm band, which corresponds to near-infrared light.
Features
・Suitable for 1400 nm band
・Low polarization crosstalk and low attenuation
・RoHS compliant

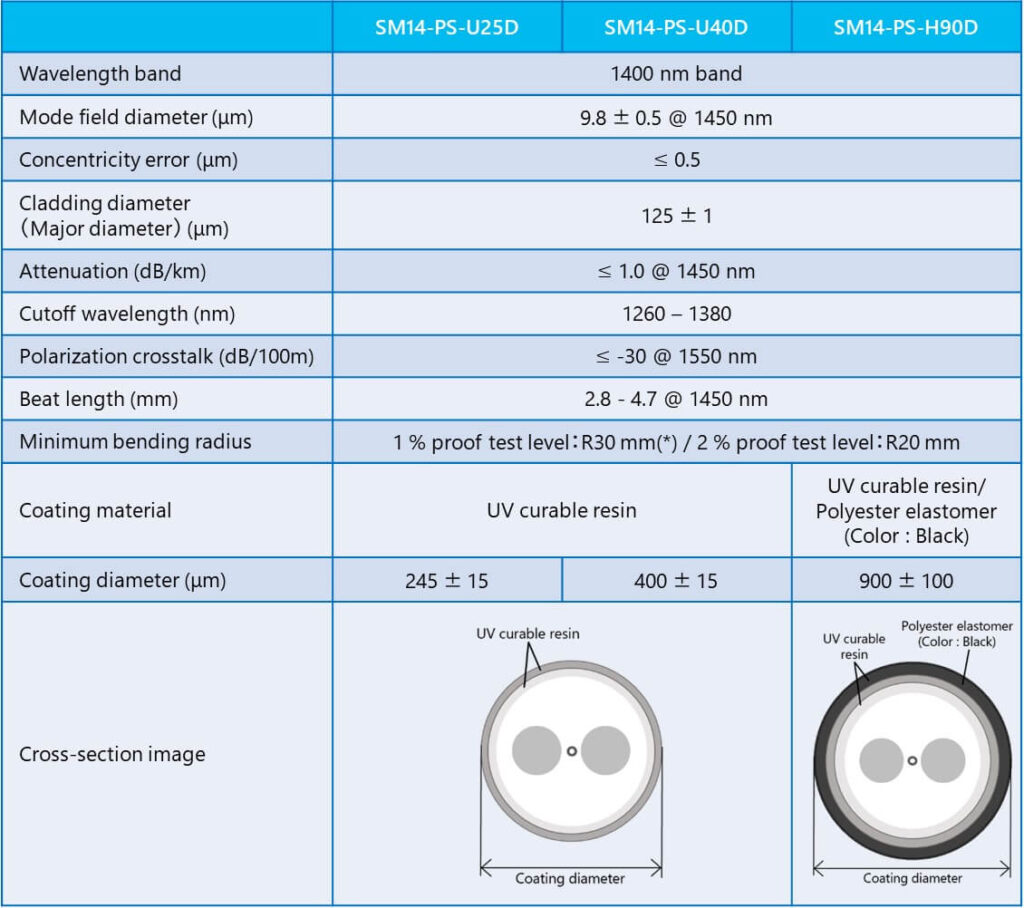

Specifications
| SM14-PS-U25D | SM14-PS-U40D | SM14-PS-H90D | |
| Wavelength band | 1400 nm band | ||
| Mode field diameter (μm) | 9.8 ± 0.5 @ 1450 nm | ||
| Concentricity error (μm) | ≤ 0.5 | ||
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | ||
| Attenuation (dB/km) | ≤ 1.0 @ 1450 nm | ||
| Cutoff wavelength (nm) | 1260 – 1380 | ||
| Polarization crosstalk (dB/100m) | ≤ -30 @ 1550 nm | ||
| Beat length (mm) | 2.8 – 4.7 @ 1450 nm | ||
| Minimum bending radius | 1 % proof test level：R30 mm(*) / 2 % proof test level：R20 mm | ||
| Coating material | UV curable resin | UV curable resin/ Polyester elastomer (Color : Black) | |
| Coating diameter (μm) | 245 ± 15 | 400 ± 15 | 900 ± 100 |

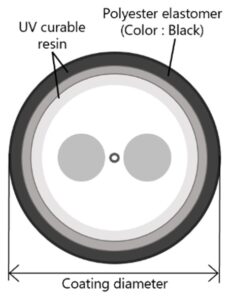

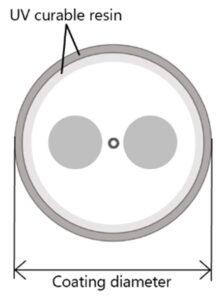

Cross-section image |  |  | |
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name.(e.g., SM14-PS-U25D-H)
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name.
(e.g., SM14-PS-U25D-H)
