0.41 μm band
PANDA

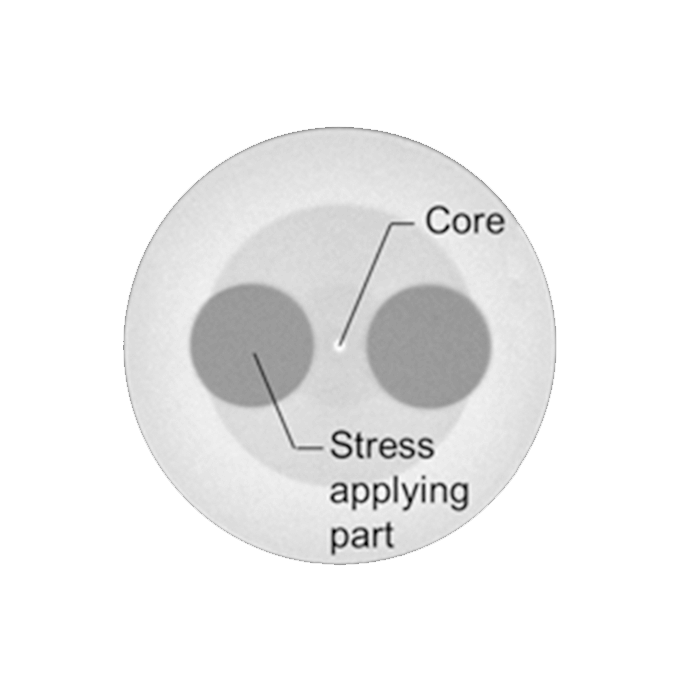

Fujikura PANDA fibers (Polarization-maintaining AND Absorption-reducing fiber) have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector. This PANDA fiber is compatible with 0.41 μm band (violet-blue light), making it suitable for high-power light transmission because of its pure silica core.
Features
・Suitable for 0.41 µm band
・Low polarization crosstalk and low attenuation
・High power light transmission with pure silica core
・RoHS compliant

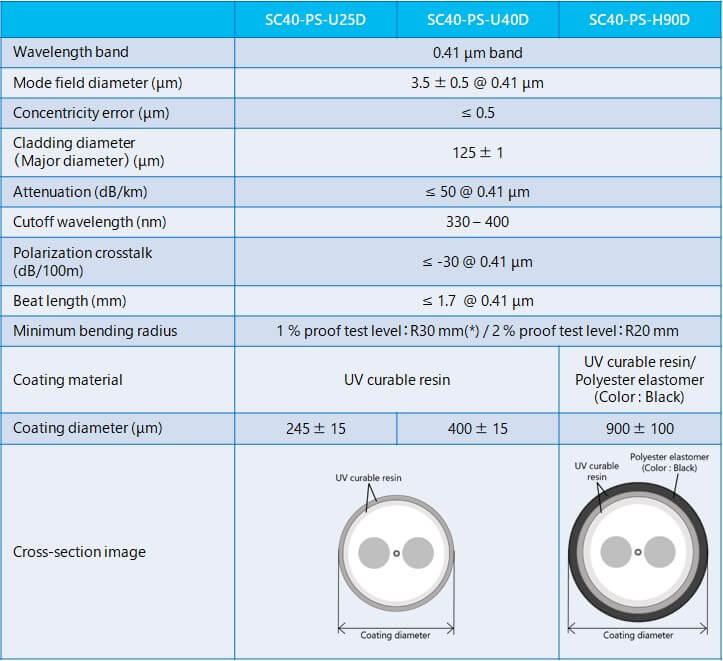

Specifications
| SC40-PS-U25D | SC40-PS-U40D | SC40-PS-H90D | |
| Wavelength band | 0.41 μm band | ||
| Mode field diameter (μm) | 3.5 ± 0.5 @ 0.41 μm | ||
| Concentricity error (μm) | ≤ 0.5 | ||
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | ||
| Attenuation (dB/km) | ≤ 50 @ 0.41 μm | ||
| Cutoff wavelength (nm) | 330 – 400 | ||
| Polarization crosstalk (dB/100m) | ≤ -30 @ 0.41 μm | ||
| Beat length (mm) | ≤ 1.7 @ 0.41 μm | ||
| Minimum bending radius | 1 % proof test level：R30 mm(*) / 2 % proof test level：R20 mm | ||
| Coating material | UV curable resin | UV curable resin/ Polyester elastomer (Color : Black) | |
| Coating diameter (μm) | 245 ± 15 | 400 ± 15 | 900 ± 100 |

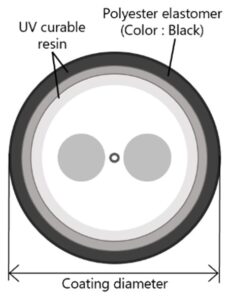

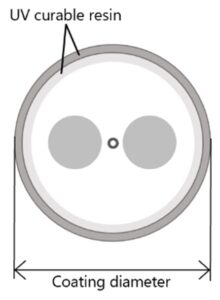

Cross-section image |  |  | |
*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name. (e.g., SC40-PS-U25D-H)
