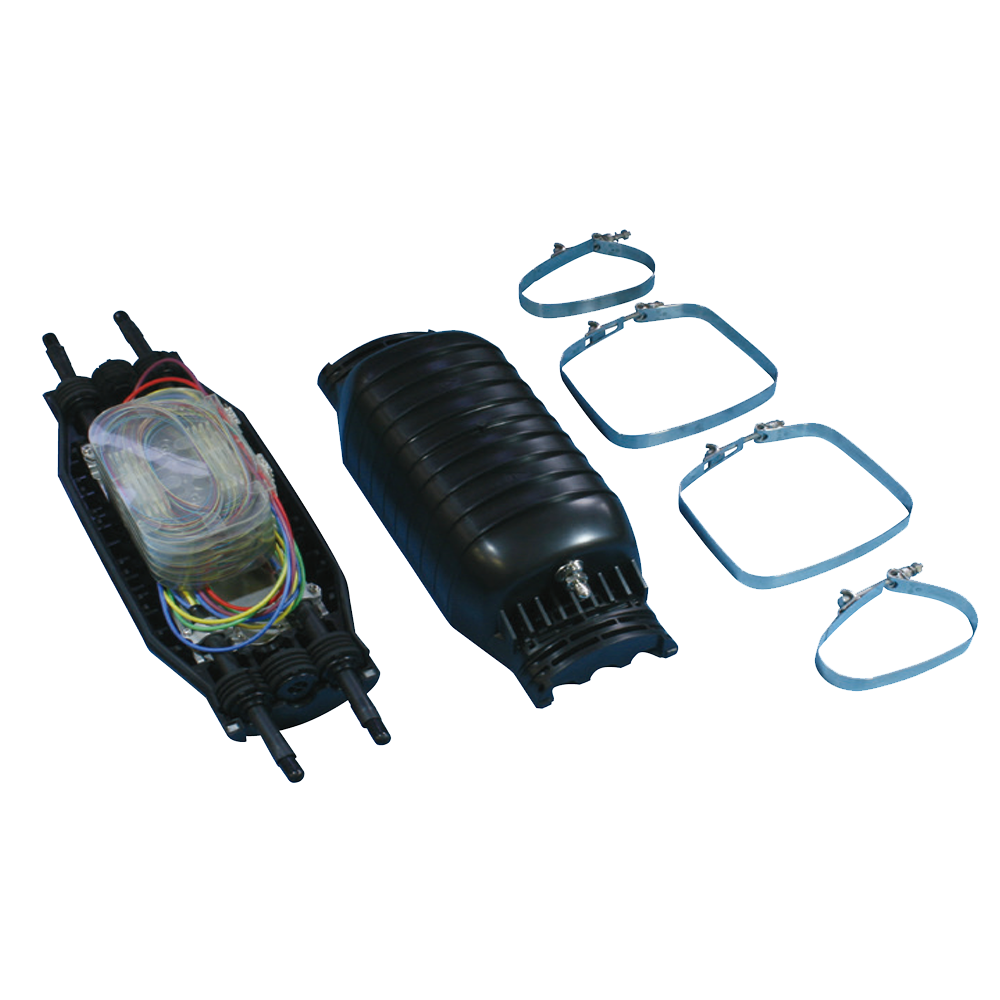

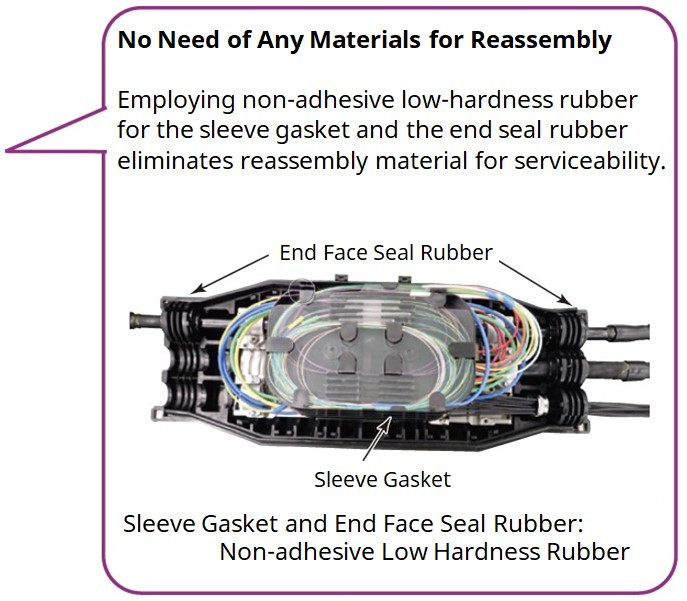

The FSCO-FB/FB3 Series is a compact, high-density underground fiber optic in-line closure designed for small handholes. It offers an optional hanging bracket for aerial application. The closure utilizes non-adhesive low-hardness rubber for easy reassembly. It also has an optional leakage detection module for detecting inundation with the optical path monitoring system.
Optical Closures for Underground
FSCO-FB/FB3 Series
The cable entry section is in-line, making it ideal for use in space-constrained manholes and handholes.

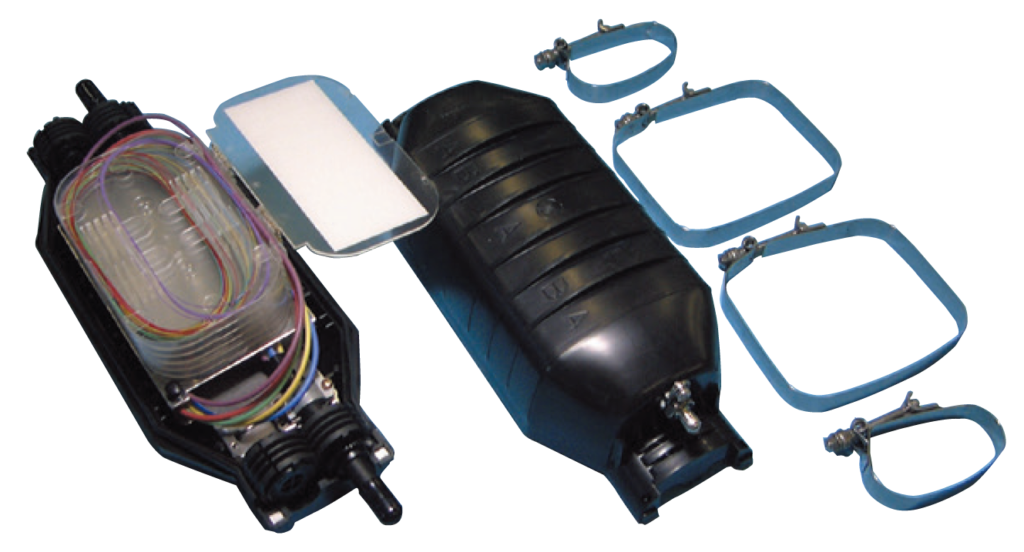

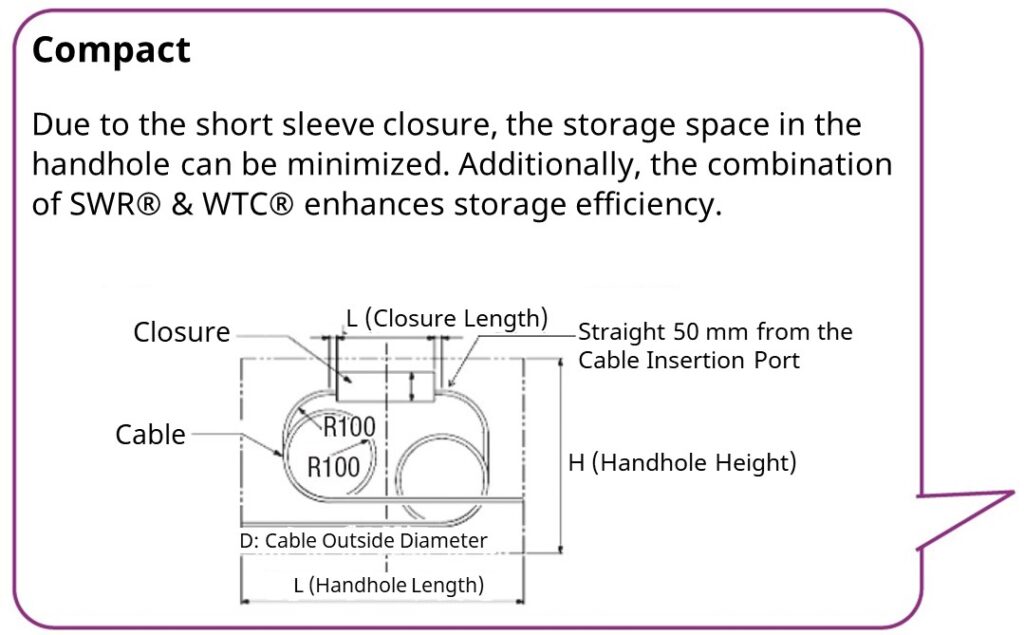

The closure utilizes a band mechanism, simplifying both assembly and disassembly while providing support for SWRTM/WTCTM and loose tube cables.
Moreover, the cable entry section can accommodate a maximum of six cables, including one set of main cables (two pieces) and four branching cables, ensuring efficient connectivity.
Features
■Compact, high-density and inline type
■No need of any material for reassembly
Application
■Underground/Aerial, Outdoor
■Manhole, Handhole
| FSCO-FB-BH6 | FSCO-FB3/BH8 | ||
| Applicable Cable Type | SWRTM/WTCTM, Loose tube cable | ||
| Cable Capacity/ Applicable Cable Dia. | Main Cable | 2 pcs / 8-21 mm | 2 pcs / 8-21 mm |
| Branch Cable | 2 pcs / 8-21 mm | 4 pcs / 8-21 mm | |
| Number of Splice Trays | 6 trays | 8 trays | |
| Fiber Capacity | Single Fiber (*1) | 72 fibers (12 fibers/tray) | 96 fibers (12 fibers/tray) |
| 12f SWR (*2) | 432 fibers (72 fibers/tray) | 432 fibers (72 fibers/tray) (*3) | |
| IP Rating | IP68 (*4) | ||
| Dimension (in approx.) | W140 x D126 x L340 mm | W158 x D145 x L405 mm | |
| Weight (in approx.) | 3 kg | 5 kg | |
(*1) 250µm, (*2) For 200µm SWR, (*3) 432 fibers is max volume of closure inside capacity for fiber wiring,
(*4) JIS C 0920, Waterproof 50 kPa x 1 hour
