Simplex Patch Cord

Fujikura offers high-quality simplex patch cords for reliable connections in single-mode and multimode fibers. They have low loss, high return loss, and compatibility with different fiber types. Quality tested and customizable options are available.

Download Brochure

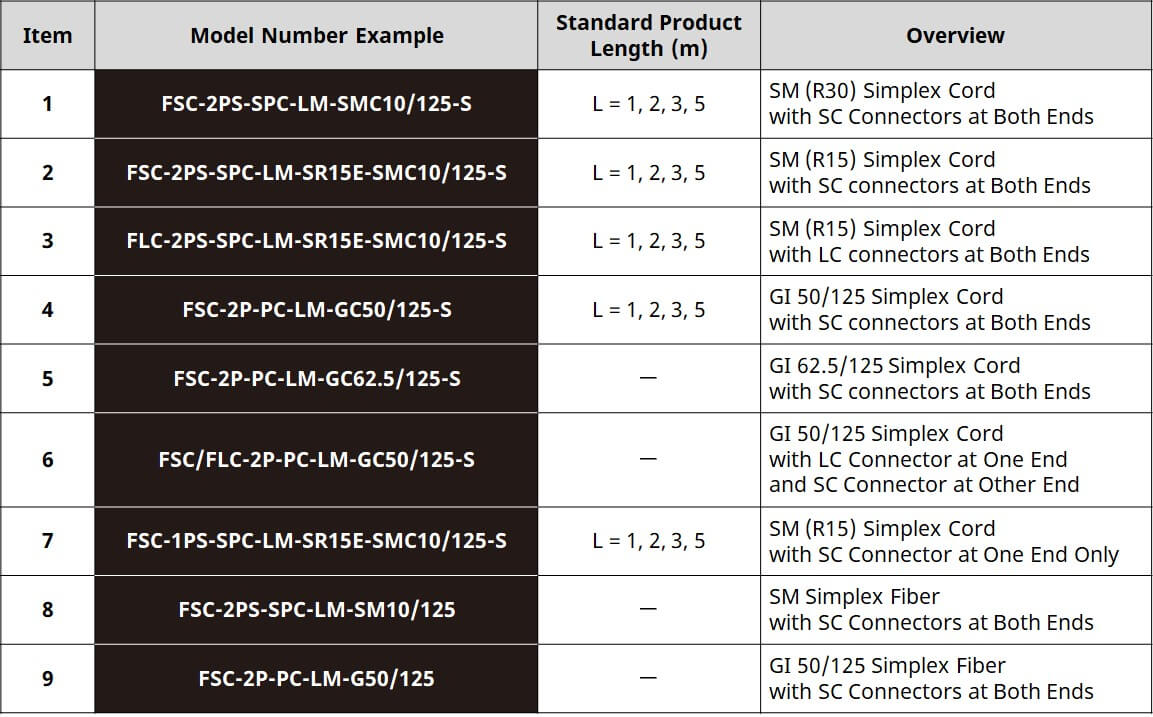

Simplex Patch Cord

SC-SC

SC-LC

LC-LC

Features

■Applicable for SC, LC, MU and FC connector
■Applicable for SM fiber and MM fiber

Applications

■Wiring in the optical equipment for inside plant
■Wiring in the Optical Termination Enclosure and Optical Distribution Frame

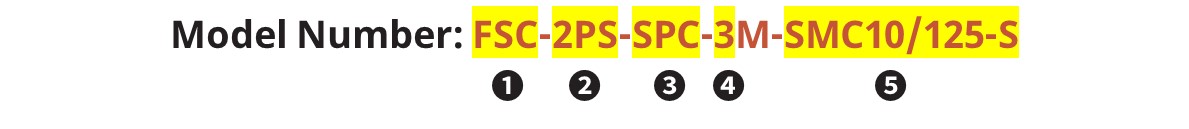

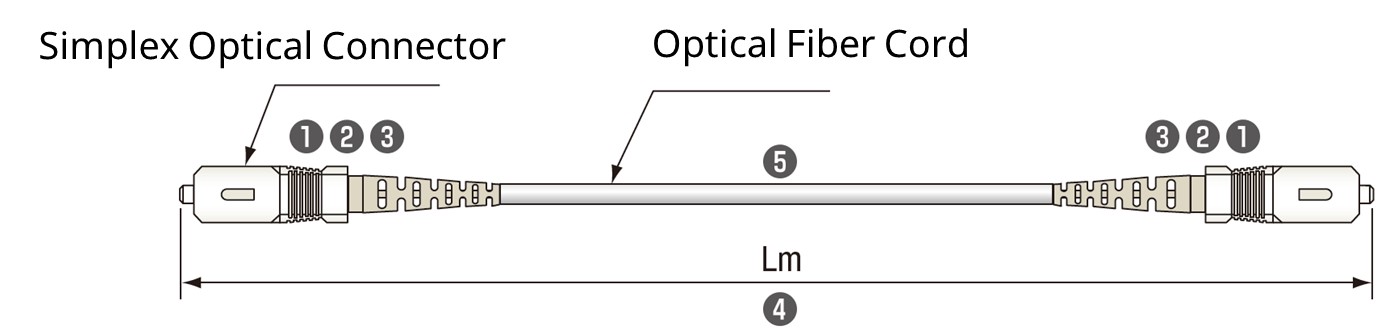

Both End with Connectors

■Both ends with connectors

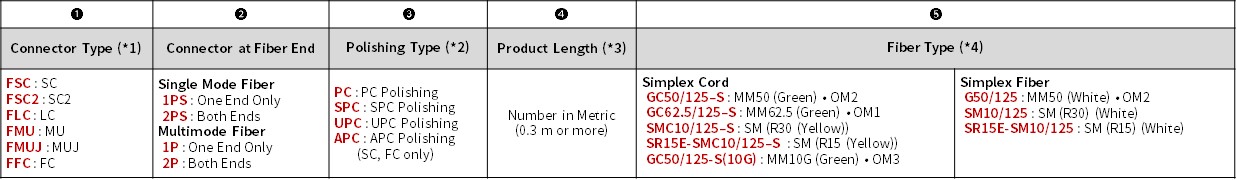

(*1): When different connectors are attached at both ends, indicate FFC/FSC.
(*2): When polishing at both ends is different, indicate PC/SPC. multimode fiber is PC polishing only
(*3): Product length tolerances L ≤ 1m：+10cm , -0 / 1m < L ≤ 10m：+10% , -0 / 10m < L ≤ 50m：+1m , -0 / 50m < L：+2% , -0

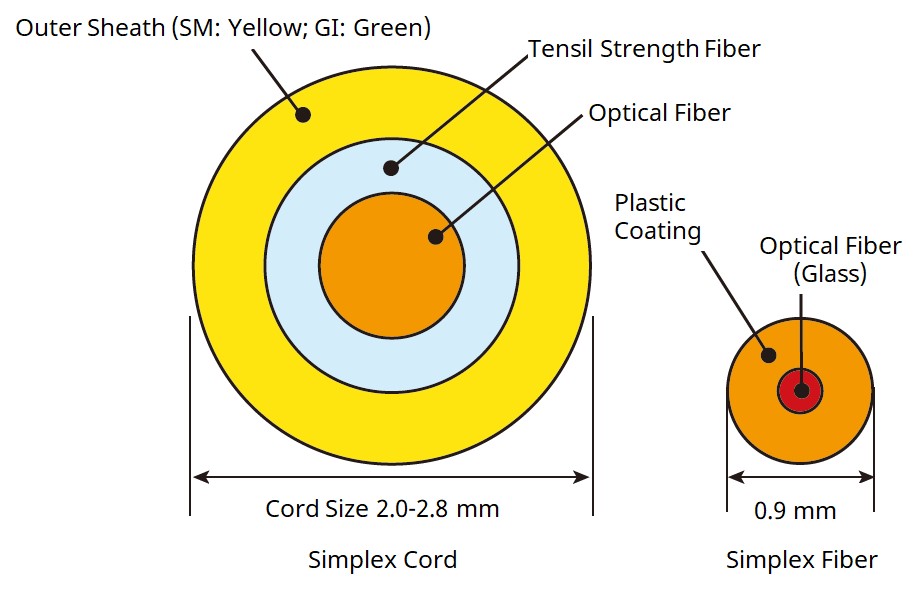

(*4): For Ø 0.9 mm fiber and Ø 2 mm cord, color in () indicates coating color.

* Specify the total length (m) for L.
