Optical Termination Box (outdoor use)
FSPH Series
The FSPH Series is a rainproof optical termination box designed for outdoor use. It can be mounted on outdoor walls and supports drop cables.
Optical Termination Box (Outdoor Use) FSPH Series
The FSPH Series is designed for connecting outdoor cables as well as indoor cables. It is intended to be mounted on a wall.

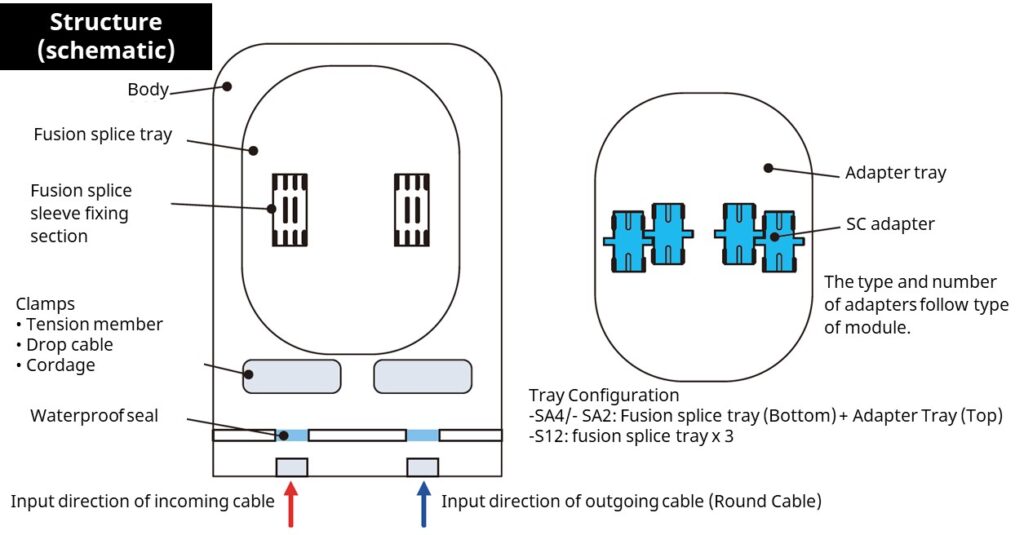

Features
■Rainproof, mountable on outdoor walls
Applications
■Wall mount
■Outdoor(Under eaves) or Indoor
FSPH-SA4-SC
(*1) When a mechanical splice is used, the number of fusion splices is a half.
(*2) Use short boot type of LC connector to secure the safely fiber bending radius.
(*3) Use in indoor for cordage output
| Type No | FSPH-12 | FSPH-SA4-SC | FSPH-SA2-LC | FSPH-SA4-LC | |
| Cable Installation Direction | Bottom | ||||

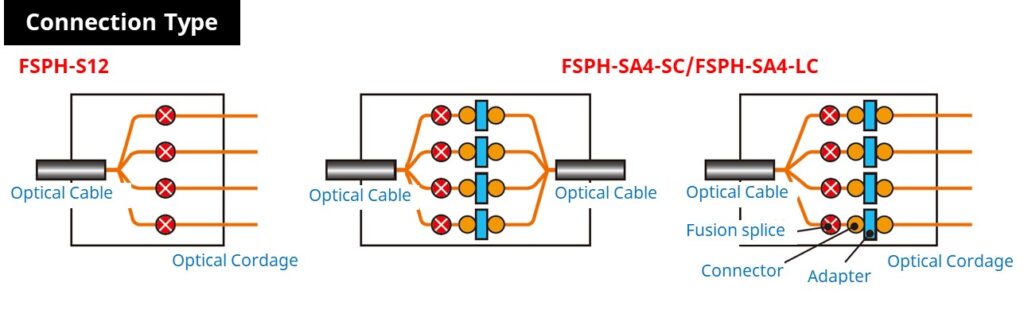

| Connection Type | Fusion splice | SC connector | LC connector (*4) | ||
| Number of Adapters | None | 4 | 2 | 4 | |
| Splice Fiber Capacity | Single Fiber (0.25 mm) | 12 fibers | 4 fibers | ||
| Single Fiber (0.9 mm) | 12 fibers | 4 fibers | |||
| 4 Fiber Ribbon | 24 fibers | 8 fibers | |||
| IP Rating | IPX3 (JIS C 0920) | ||||
| Dimensions (mm) | W130 x H195 x D35 | ||||
| Mounting Hole Position (mm) | Inner : W100 x H133, 4holes(Φ5, Knockout hole) Outer : W87, 1hole(Φ4.5) and 2holes(Key hole for Φ4.5) | ||||
| Applicable Cable | Input | Round cable Φ 15mm or less (1pc), 2mm cord (4pcs) or 2mm width flat outdoor or indoor cable (2pcs) | |||
| Output | Round cable Φ 15mm or less (1pc), 2mm cord (4pcs) or 2mm width flat outdoor or indoor cable (2pcs) | ||||
| Weight (kg) | Approx. 0.3 | ||||
(*4) Please use short boot type of LC connector to secure the fiber bending radius.
