MDC/MMC Cleaner
Push-type cleaners feature an easy one push action which quickly and effectively clean the end-face of connectors on jumpers or through adapters. They are effective for removing oil, dust, and dirt particulates that can damage connectors and have a negative impact on fiber optic network performance.
MDC Cleaner
Tired of twisting your wrist while cleaning the connector end face?
Fujikura’s One Click™ Cleaner is an easy-to-use option for cleaning connectors on jumpers and in adapters. Simply insert the One-Click™ Cleaner into an adapter and push until a “click” is heard. The fiber end-face is effectively and gently cleaned.
The One Click™ Cleaner’s design protects the customer’s equipment by dry-cleaning and removing contamination from the alignment sleeve or ferrule.
Ordering information
| DESCRIPTION | Fujikura Number |
| One-Click™ Cleaner CS/MDC Duplex (2 x 500+ cleans) | CS/MDC-CLK-A |
Specifications
| Model number | CS/MDC-CLK-A |
| Classification color | Purple | |
Applicable fiber optic connector & adaptor | CS® Connector, MDC Connector CS® is a Registered Trademark of Senko Advanced Components, Inc. 2018© | |
Dimension(mm) (※Guide cap dimensions and prongs are not included.) | W18 x H30 x L220 (Nozzle extendability:L200) | |
| Function/ handling type | One-Push | |
| No. of cleanings | >500times | |
| Cleaning method | Dry(Cleaning the Zirconia ferrule endface with cleaning cloth,with no chemical of solvent) | |
| Handbook |  |
Maintaining Duplex Connector Accessibility
with DirectConec™ Push-Pull Technology
MDC connectors with DirectConec™ push-pull boot technology allows installation experts to easily insert and extract the connector in tighter, more confined spaces without affecting neighboring connectors. The flexible boot maintains proper bend radius for cable routing and will not buckle during connector insertion and extraction.
*DirectConec™ and ELiMENT™ are trademarks of US Conec Ltd. One-Click™ is a trademark of Fujikura Ltd.
MDC/MMC Future Evolution in Fujikura’s Cabling Solutions – 3x Cabling Port Density
MDC/MMC Future Evolution in Fujikura’s Cabling Solutions – 3x Cabling Port Density
MMC Cleaner
MMC multi-fiber optical connectors offer three times the high-density mounting compared to conventional MPO multi-fiber optical connectors. To ensure their optimal performance, we have provided dedicated cleaners with specially designed nozzles and cleaning head shapes. These features enable quick and effective cleaning of connector end-faces on jumpers or through adapters with a simple one-push action. Our cleaners efficiently remove oil, dust, and dirt, preventing potential damage and maintaining the high performance of fiber optic networks.
Feautres

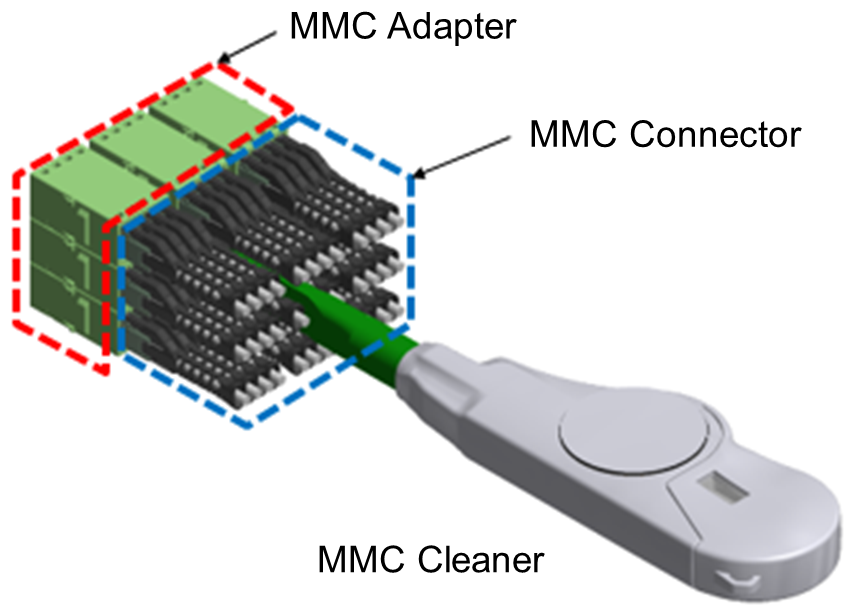

✔ Conventional cleaning is possible even under
high-density mounting.

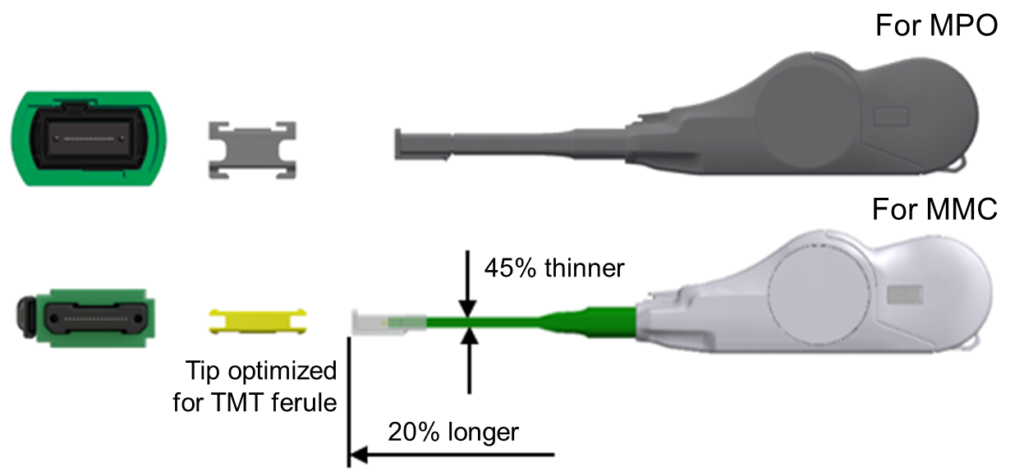

✔ Optimization of nozzle and cleaning head shape
Specifications
| One-Click™ Cleaner MMC | One-Click™ Cleaner MMC-16 | |
| Classification color |
Green |
Purple |
| Applicable connector | 12fiber and 24fiber MMC | 16fiber MMC |
| Size (mm) | W 19 x H 43.5 x L 223 | |
| Number of cleaning | 500 times or more | |
・Patent Pending in US, EU and JP
・One-Click™ is a Registered Trademark of Fujikura Ltd.
