Fiber Optic
Termination Box
for 19-inch Rack Mounting
(Fixed Enclosure)
FTB-223A Series
The FTB-223A Series supports 0.25 mm / 0.9 mm single fiber and 4 fiber ribbon optical cables. It allows for easy removal of the upper lid by pulling the latch button on the back, enabling swift construction. The use of aluminum as the main material makes it lighter than conventional products.
FTB-223A Series

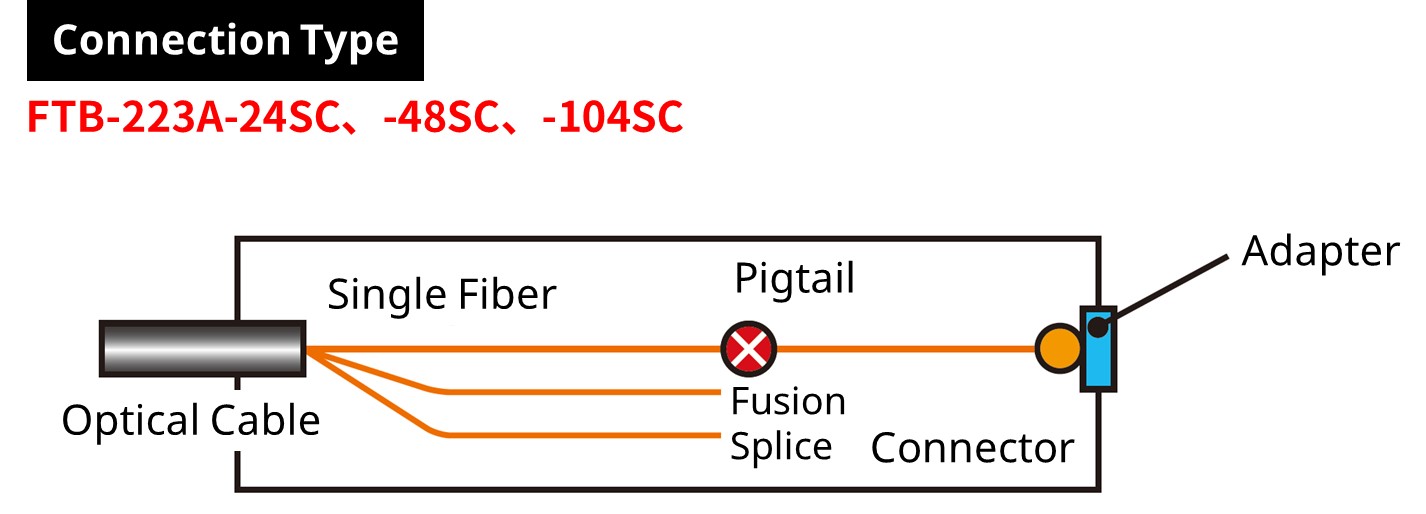

■ Supports 0.25 mm / 0.9 mm single fiber and 4 fiber ribbon optical cables.

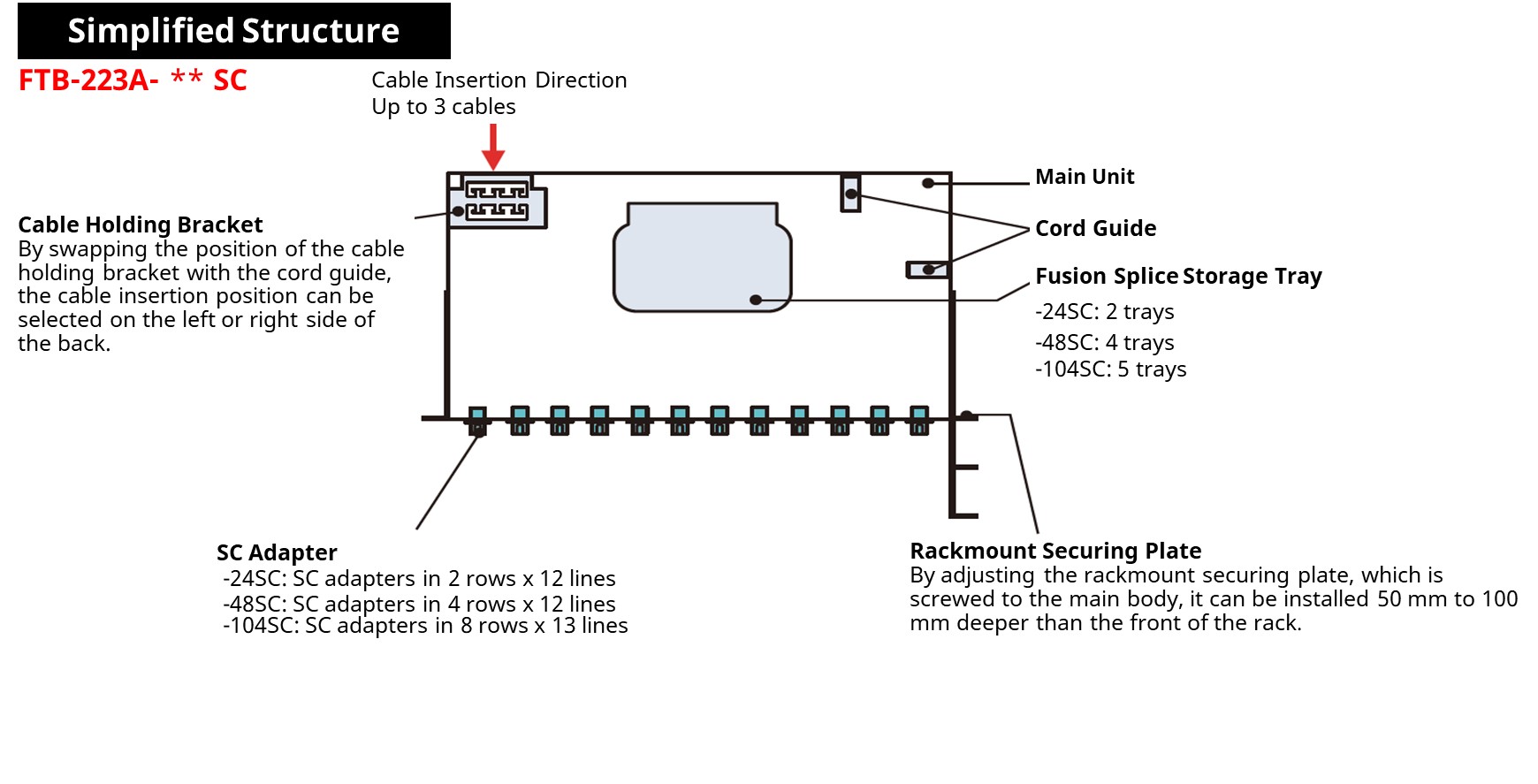

■ Enabling swift construction by simply pulling the latch button on the back for ease removing the upper lid
■ Lighter than conventional products by utilizing aluminum as the main material

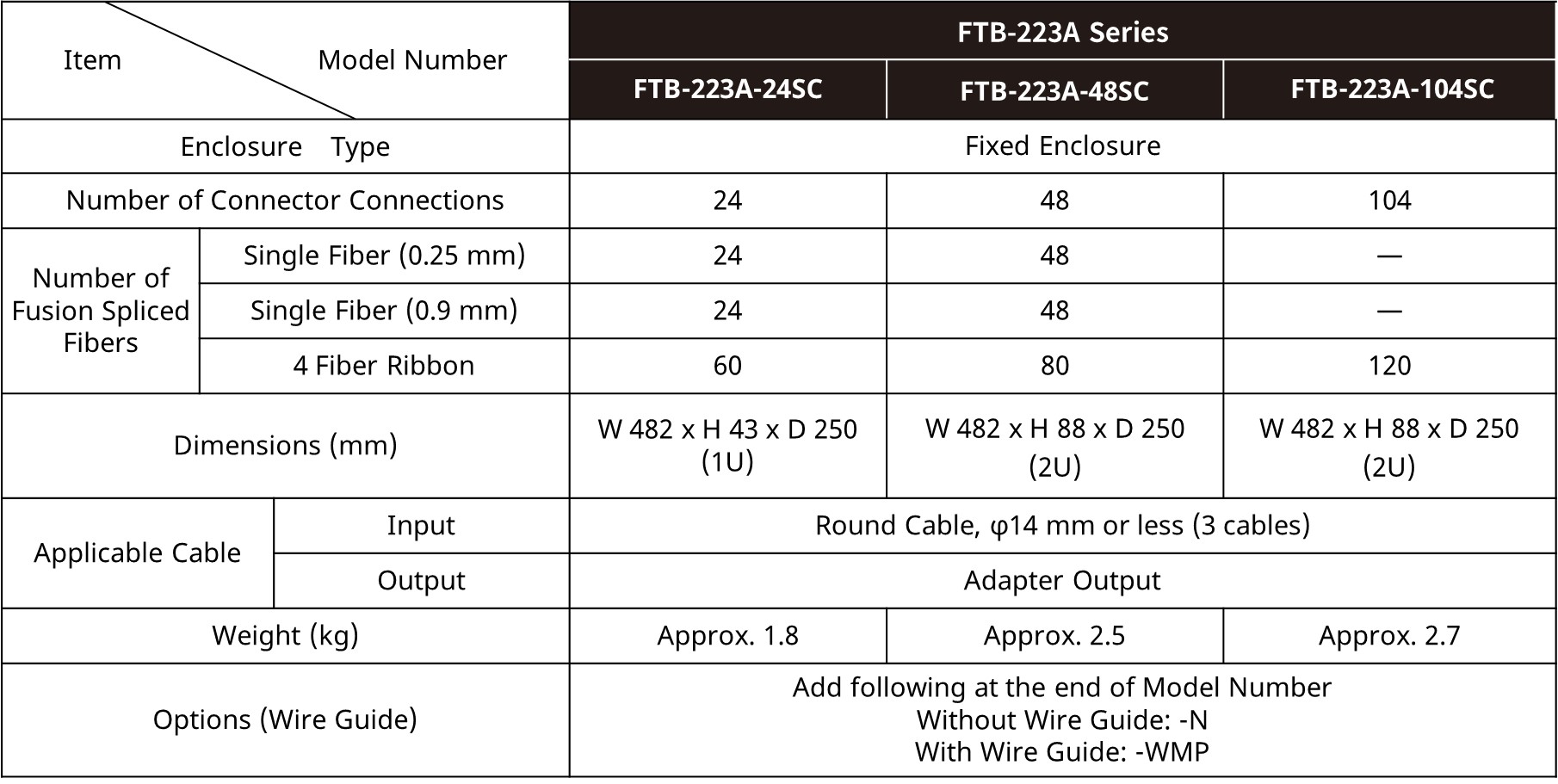

Model Number Example
Without Wire Guide: FTB-223A-24SC-N, FTB-223A-48SC-N, FTB-223A-104SC-N
With Wire Guide: FTB-223A-24SC-WMP, FTB-223A-48SC-WMP, FTB-223A-104SC-WMP
Note: Optical fiber cords for internal wiring are not included. Contact us for the availability of pre-wiring type.
Model Number Example
Without Wire Guide: FTB-223A-24SC-N, FTB-223A-48SC-N, FTB-223A-104SC-N
With Wire Guide: FTB-223A-24SC-WMP, FTB-223A-48SC-WMP, FTB-223A-104SC-WMP
Note: Optical fiber cords for internal wiring are not included. Contact us for the availability of pre-wiring type.
