Optical Termination Box
(Outdoor use)
FPB-202

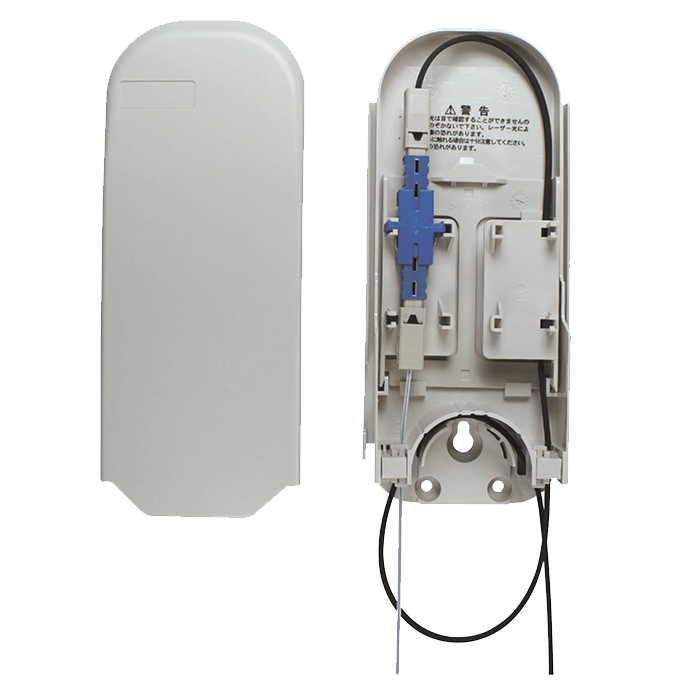

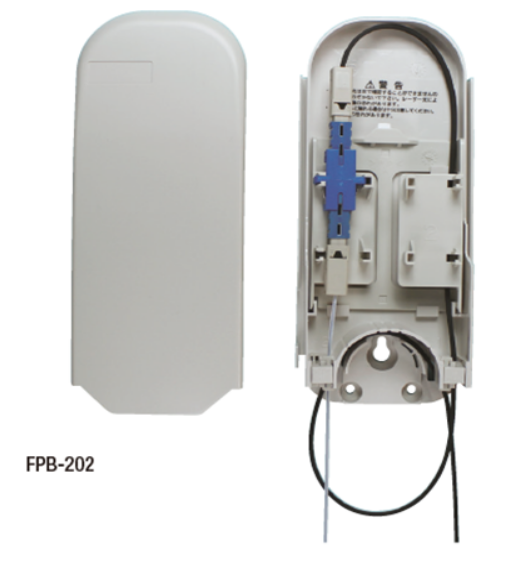

The FPB-202 is an optical termination box designed for residential outdoor use. It facilitates the jointing of drop cables to indoor cables using FAST™-SC connectors. The cabinet is installed on interior and exterior walls of residential buildings, ensuring easy installation. It does not have excess fibers and supports drop/indoor cables with 15 mm bending radius such as "SR15" and "SR15E".
Optical Termination Box (Outdoor Use)
FPB-202 Series
The FTB-202 is designed for joining flat-type outdoor cables with indoor cables using FAST™-SC (*1) connectors. It is intended for wall-mounted installation.
Features
■Easy installation for connecting flat-type drop cables with indoor cables.
■No excess fibers in the cabinet when using FAST-SC.
Applications
■Wall mount
■Outdoor(Under eaves) or Indoor

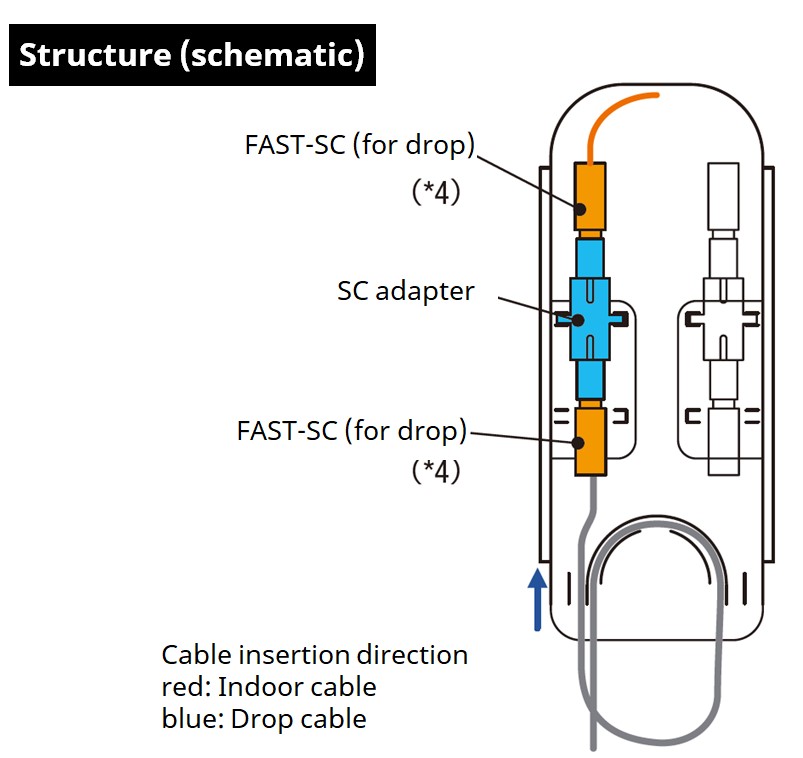

(*2) SC adapter is an option.
(*3) Max capacity of SC adapter.
(*4) FAST SC(for drop cable) is an option.
| Type No | FPB-202 | FPB-202-1SC | FPB-202-2SC | |
| Cable Insertion Direction | Bottom | |||

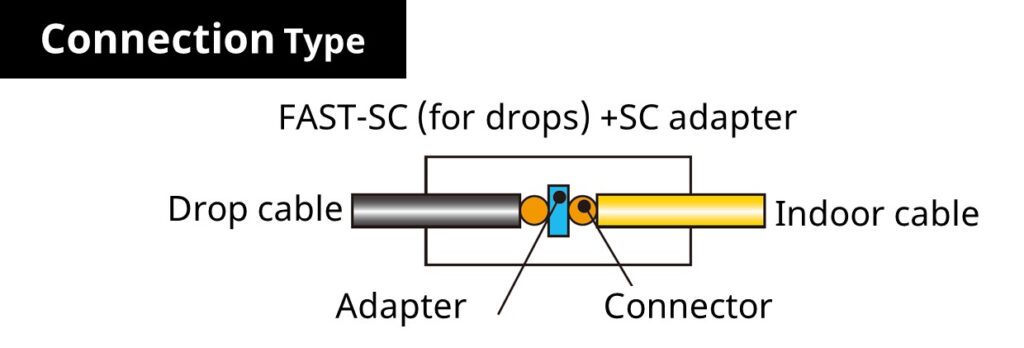

| Connection Type | SC connector | |||
| Number of Adapters (*2) | None | 1 | 2 | |
| IP Rating | IPX3 (JIS C 0920) | |||
| Dimensions(mm) | W77 x H183 x D37 | |||
| Mounting Hole Position | W27.5 x H123, 2holes(Φ4) and 1hole(Key hole for Φ4) | |||
| Applicable Cable | Input | 2mm width flat outdoor or indoor cable (2 pcs) | ||
| Output | 2mm width flat outdoor or indoor cable (2 pcs) | |||
| Weight | Approx. 0.2 | |||
(*1) FAST-SC is an option, (*2) Adapter capacity is 2 pcs.
