Optical Closures for Aerial
FSCO-V3 Series
The FSCO-V3 Series is optimized for constructing FTTx access network. It is compatible with SWR™ optical cables and offers ultra-high density storage of up to 720 fibers. The latch method is used for sleeve fastening, eliminating the need for tools. The cable inlet is designed to accommodate various cable sizes without selecting packing size. Replacement sleeves are available for easy renewal. It also supports branching fibers within the closure for WTC™ cables.
Optical Closures for Aerial
FSCO-V3 Series
The FSCO-V3 closure is specifically designed for aerial applications, optimized for the construction of FTTH access facilities.

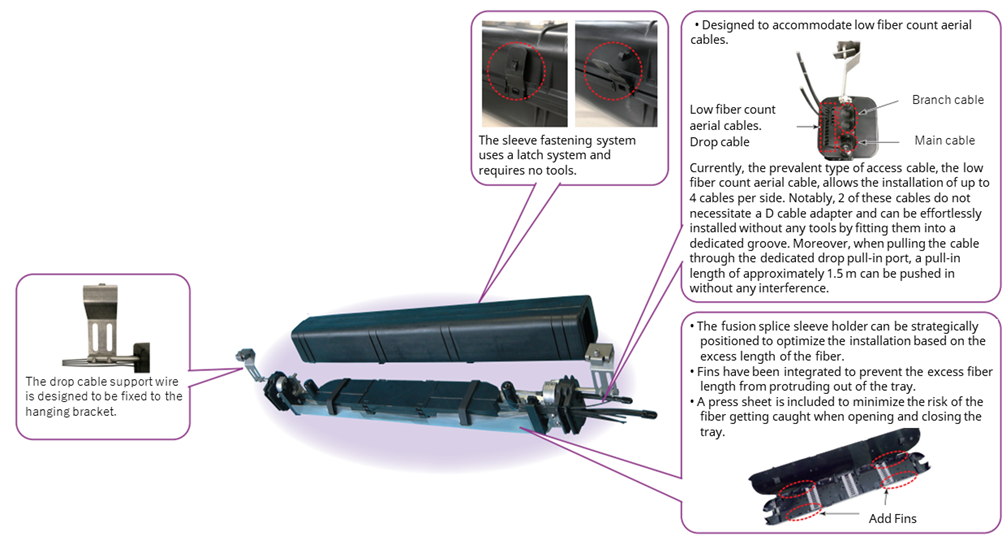

The sleeve fastening mechanism utilizes the latch method, ensuring secure closure. The cable inlet features material that eliminates the need for selecting packing size based on the cable’s outer diameter, simplifying reassembly. Additionally, replacement sleeves are readily available for easy renewal.
Features
■Easy opening/closing of the sleeve
■No need for tightening torque control
Application
■Aerial, Outdoor
| FSCO-V3-T5 | ||
| Applicable Cable Type | SWRTM/WTCTM, Loose tube cable | |
| Cable Capacity / Applicable Cable Dia. | Main Cable | 1 set (2 pcs) / 8-22 mm |
| Branch Cable | 4 pcs / 8-17 mm | |
| Drop Cable | 32 pcs / Approx. 2×5.3 mm (Figure-8 drop cable(*1), Approx 2×1.6 mm or 3.1×2 mm (Flat type out door cable) | |
| Number of Splice Trays | 5 trays | |
| Fiber Capacity | Single Fiber | 120 fibers (24 fibers/tray) |
| 12f SWR(*2) | 720 fibers (144 fibers/tray) | |
| IP Rating | IPX4 (*3) | |
| Dimension (in approx.) | W115 x H115 x L858 mm | |
| Weight (in approx.) | 3 kg | |
| Remarks | Splitter tray and SC adapter tray are available for optional | |
(*1) Messenger wire is fixed on outside of closure, (*2) For 200µm spider web ribbon fiber, (*3) JIS C 0920
