Optical Closures for Underground
FSCO-TN Series
The FSCO-TN Series is designed with an in-line structure to accommodate high-count SWR™/WTC™ cables, supporting up to 3,456 fibers. It utilizes non-adhesive low-hardness gums for easy reassembly and eliminates the need for tightening torque control. The closure offers easy opening/closing with no traditional band bolts.
Optical Closures for Underground
FSCO-TN Series
The cable entry section features an in-line structure, tailored to accommodate high-count SWRTM/WTCTM cables, supporting up to 3,456 fibers.
For reassembly, no additional materials are necessary, thanks to the utilization of non-adhesive, low-hardness gums for sleeve gaskets and end face seal packing. This innovation streamlines the process, eliminating the need for tightening torque control typically associated with traditional band bolts.
Furthermore, the cable entry section can accommodate a maximum of six cables, comprising one set of main cables (two pieces) and four branching cables, ensuring efficient connectivity.
Features
■High-density

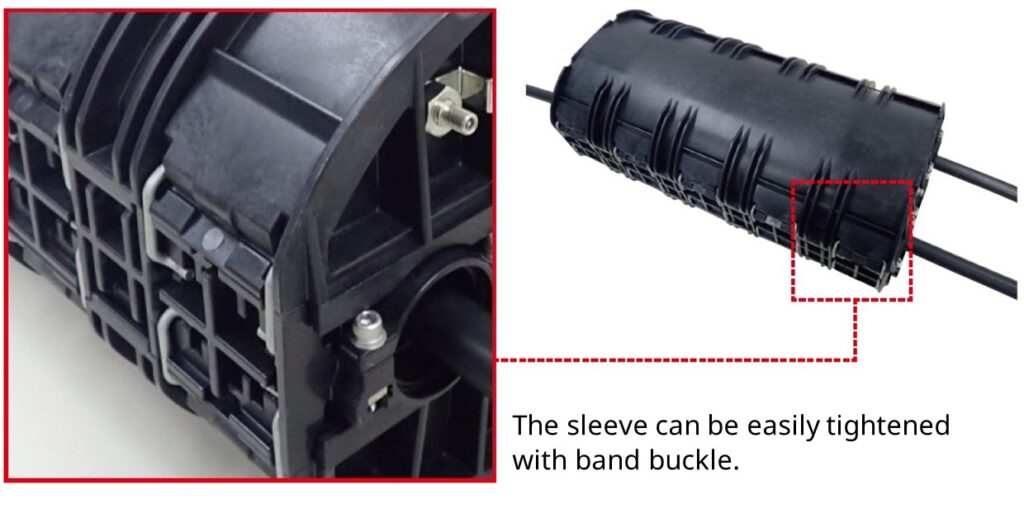

■Easy opening/closing of the sleeve
■No need for tightening torque control
Application
■Underground, Outdoor
■Manhole
| FSCO-TN-LA | FSCO-TN-HA | ||
| Applicable Cable Type | SWRTM/WTCTM (*1) | ||
| Cable Capacity /Applicable Cable Dia. | 6 pcs / 8-33mm | ||
| Number of Splice Trays | 12 trays | 24 trays | |
| Fiber Capacity | 12f SWR(*2) | 1,728 fibers (12 fibers/tray) | 3,456 fibers (12 fibers/tray) |
| IP Rating | IP68 (*3) | ||
| Dimension (in approx.) | H180 x W300 x L730 mm | H250 x W300 x L730 mm | |
| Weight (in approx.) | 10 kg | 11 kg | |
(*1) Please contact us for installation of another type cable, (*2) For 200µm,
(*3) JIS C 0920, Waterproof 39.2 kPa x 1 hour
