Optical Closures for Underground
FSCO-HHS Series
The FSCO-HHS Series is a compact, high-density underground fiber optic pod/dome closure designed for small handholes. It accommodates SWR™/WTC™ and loose tube cables. It can output up to 6 branches and handle up to 16 drop cables. The closure features non-adhesive low-hardness rubber for easy reassembly and an innovative band buckle for easy opening/closing. It has a knockout structure for effortless drilling and superior packing technology. Mounting bracket and adapter output options are available.
Optical Closures for Underground
FSCO-HHS Series

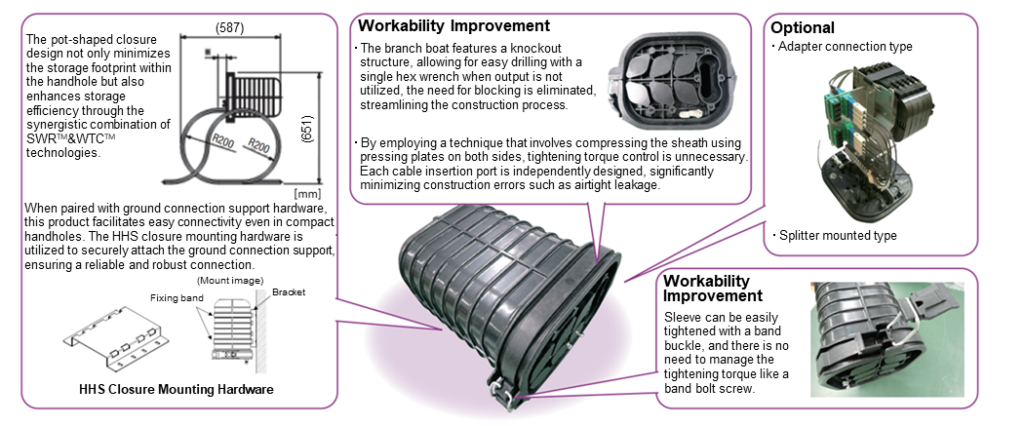

The cable entry section features a single-sided dome structure, ideal for use in space-constrained hand holes, as well as in manholes, telephone tunnels, and similar environments.
The closure incorporates a buckle mechanism, facilitating effortless assembly and disassembly while accommodating SWRTM/WTCTM and loose tube cables.
Furthermore, the cable entry section can accommodate up to eight cables, comprising one set of main cables (two pieces) and six branching cables, ensuring versatile connectivity options.
Features
■Compact, high-density
■Easy opening/closing of the sleeve
■No need for tightening torque control
Application
■Underground, Outdoor
■Handhole, Manhole
| FSCO-HHS/BH8/OA | FSCO-HHS/BH16 | ||
| Applicable Cable Type | SWRTM/WTCTM, Loose tube cable | ||
| Cable Capacity / Applicable Cable Dia. | Main Cable | 1 set (2 pcs) / 6-24 mm | 2 pcs / 6-24 mm |
| Branch Cable | 6 pcs / 6-19.5 mm | 6 pcs / 6-19.5 mm | |
| Number of Splice Tray | 8 trays | 16 trays | |
| Fiber Capacity | Single Fiber (*1) | 96 fibers (12 fibers/tray) | 192 fibers (12 fibers / tray) |
| 12f SWR (*2) | 576 fibers (72 fibers / tray) | 1,152 fibers (72 fibers / tray) | |
| IP Rating | IP68 (*2) | ||
| Dimension (in approx.) | W320 x D280 x L210 mm | ||
| Weight (in approx.) | 4 kg | ||
| Remarks | Pass through fiber tray mounted | – | |
(*1) 250µm, (*2) 200µm SWR, (*3) Waterproof 50 kPa x 1 hour
