Optical Distribution Frame
FDF1000 Series
The FDF1000 Series is a front access optical distribution frame with balanced usability and dimensions. It allows for desired capacity by mounting module units. The transparent module aids in port identification. Specify the frame and module type when ordering. Comes with a door. FDF1000RACK-8522 is a self-standing frame for MDF applications, while FDF1000RACK-6322 is against-the-wall for DCI applications.
FDF1000 Series
■ A specially designed front access optical distribution frame with balanced usability and dimensions.
■ Achieve the desired capacity by mounting a combination of module units.
■ The transparent module facilitates port identification using visible light, serving as an effective countermeasure against accidental removal.
■ Kindly specify the type and quantity of the frame and the module unit to be mounted when placing an order.
■ Optical distribution frame comes with a door.
■ FDF1000RACK-8522 is a self-standing optical distribution frame primarily for MDF applications.
■ FDF1000RACK-6322 is an against-the-wall optical distribution frame primarily for DCI applications.

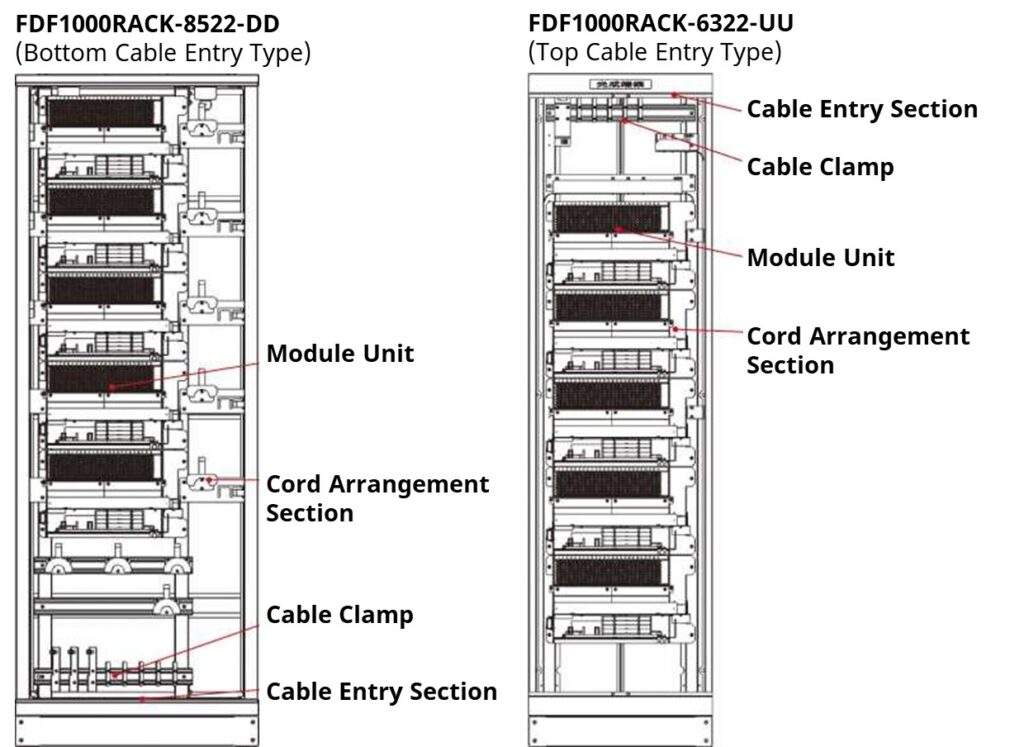

■ Configuration Example

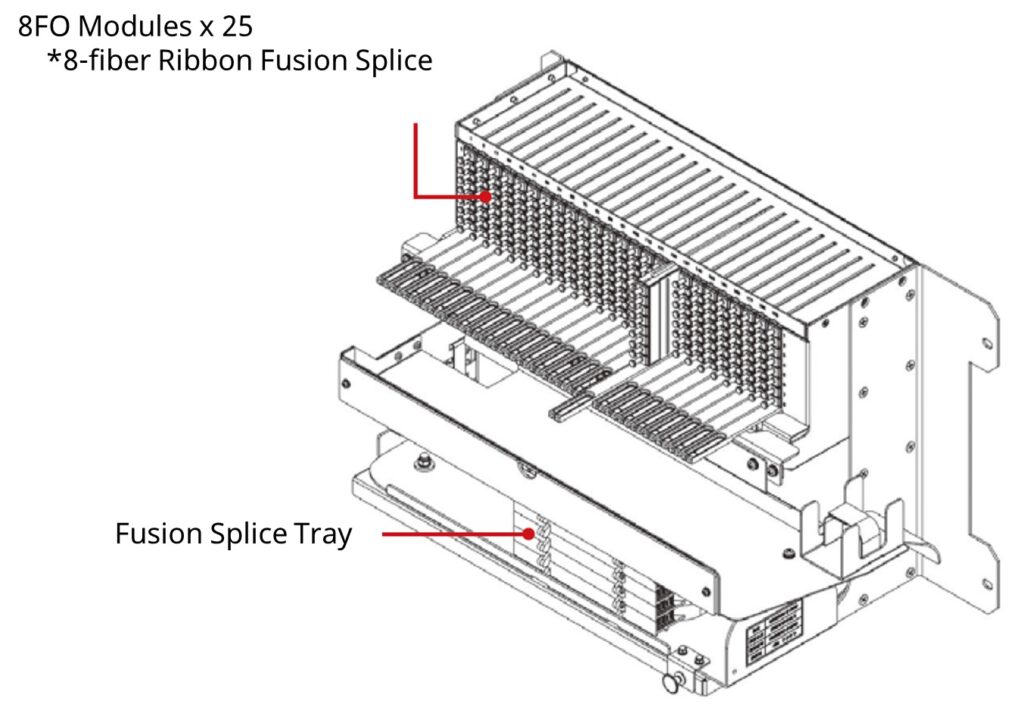

■ Module Unit
FDF1000UNIT-6322

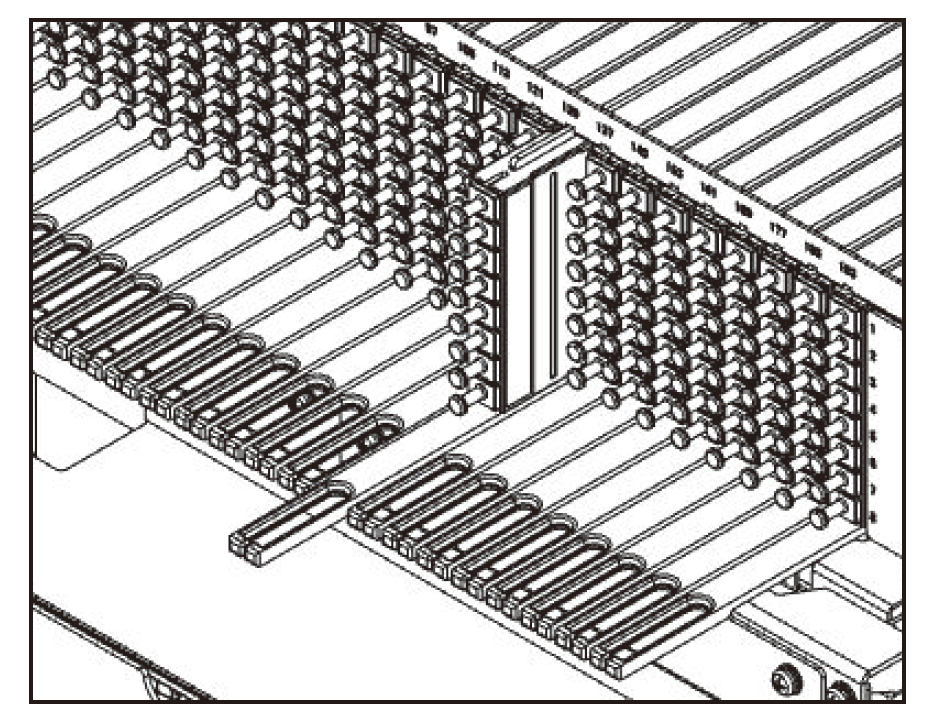

Enhanced Connector Insertion/Removal through Module Drawer

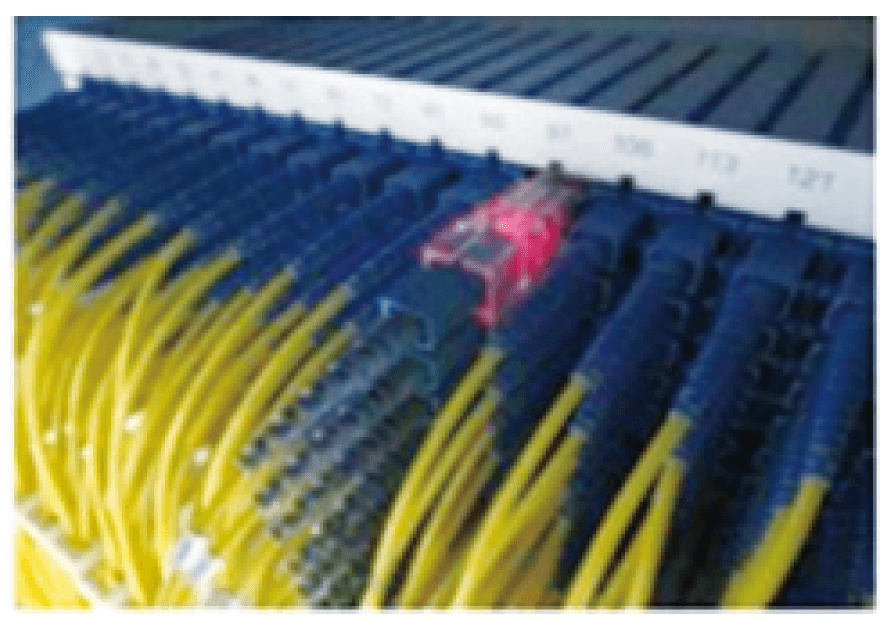

Prevention of Incorrect Removal through Transparent Connector Adapter
■ Connection Example

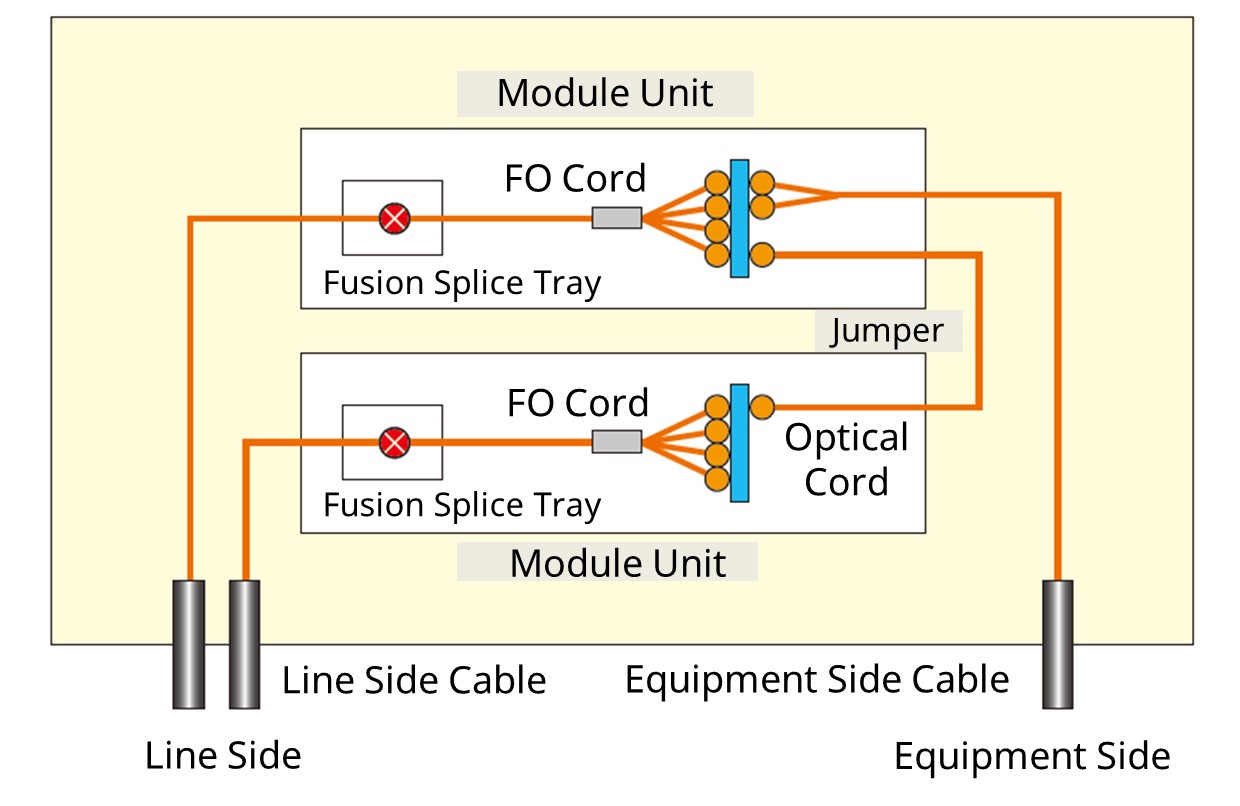

Cross Connect
FDF1000RACK-8522 is applicable to this application.

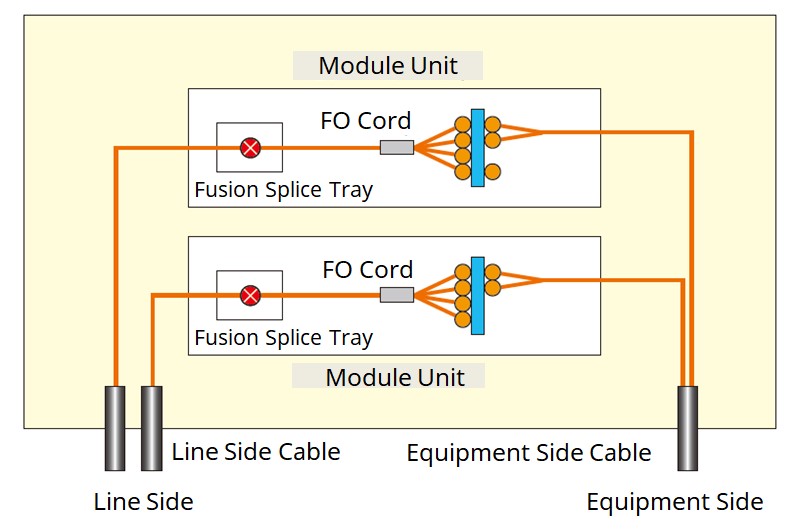

Interconnect
FDF1000RACK-6322 and FDF1000RACK-8522 are applicable to this application.
