Optical Termination Box
FDB-PR Series
The FDB-PR Series is an optical termination box that comes pre-installed with a 4-fiber module, allowing for rapid installation without the need for FO cord or cord preparation. The 24-fiber type can store pass-through cables and enable mid-access branching. Module expansion for every 4 fibers is possible. The case is lockable for added security. Compatible with single-mode fiber only.
Optical Termination Box (Indoor Use)
FDB-PR Series
The FDB-PR is designed for connecting outdoor cables as well as indoor cables and includes a pre-installed 4FO (Fan Out of 4 Fiber Ribbon) module.
Features
■FO (fan-out) cord preparation is not necessary, enabling rapid installation.
■The 24-fiber type could be used to store pass-through cables and for mid-access branching of cables.
Application
■Wall mount
■Indoor
(*1) Specify < > in multiples of 4. . Note [FDB-PR-12SC] is the model number implements 1 module.
(*2) The number of connections depends on the number of modules implemented.

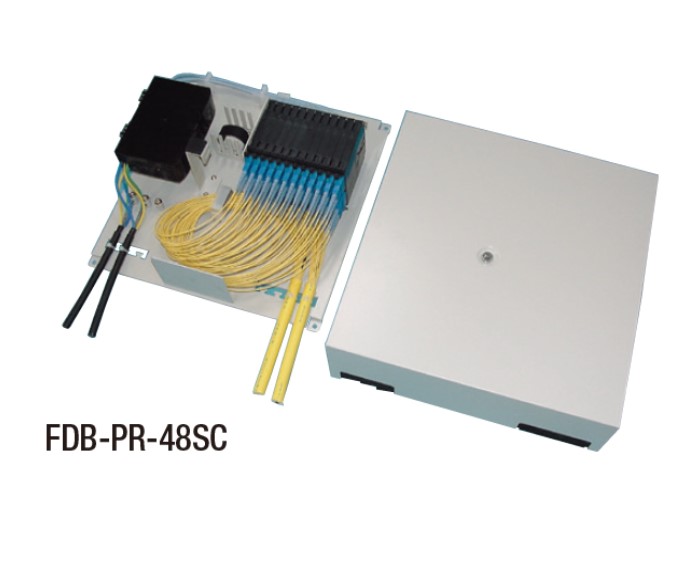

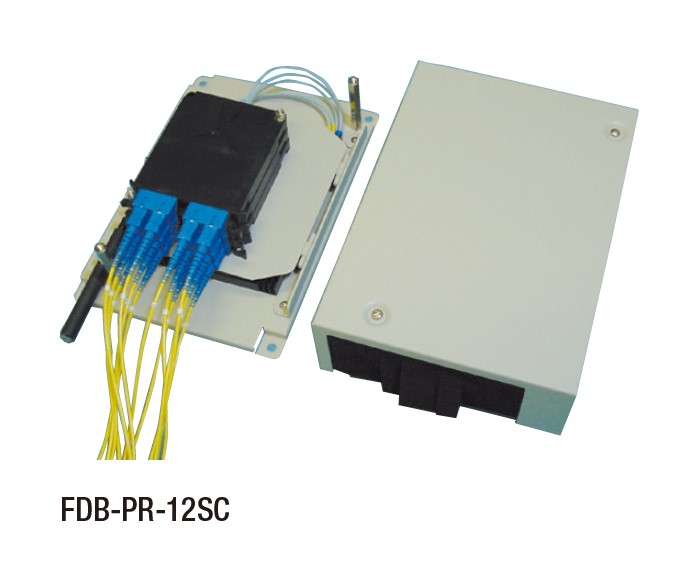

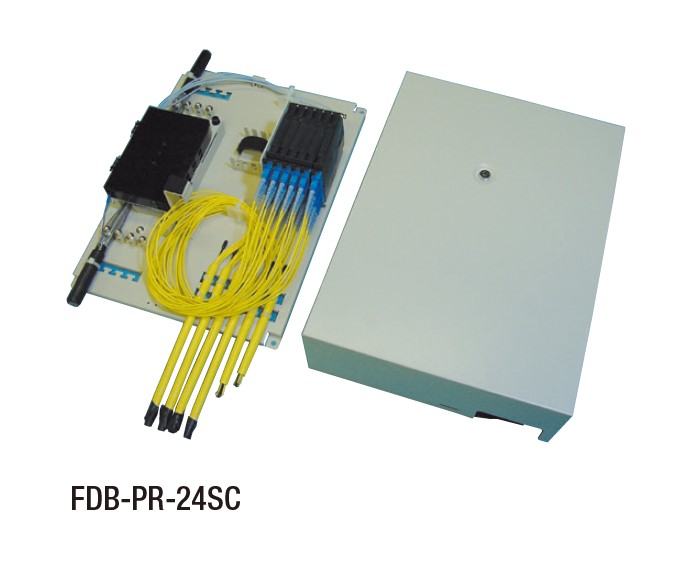

| Type No | FDB-PR-12SC<*1> | FDB-PR-24SC<*1> | FDB-PR-48SC<*1> | |
| Cable Installation Direction | Bottom | Top and Bottom | ||

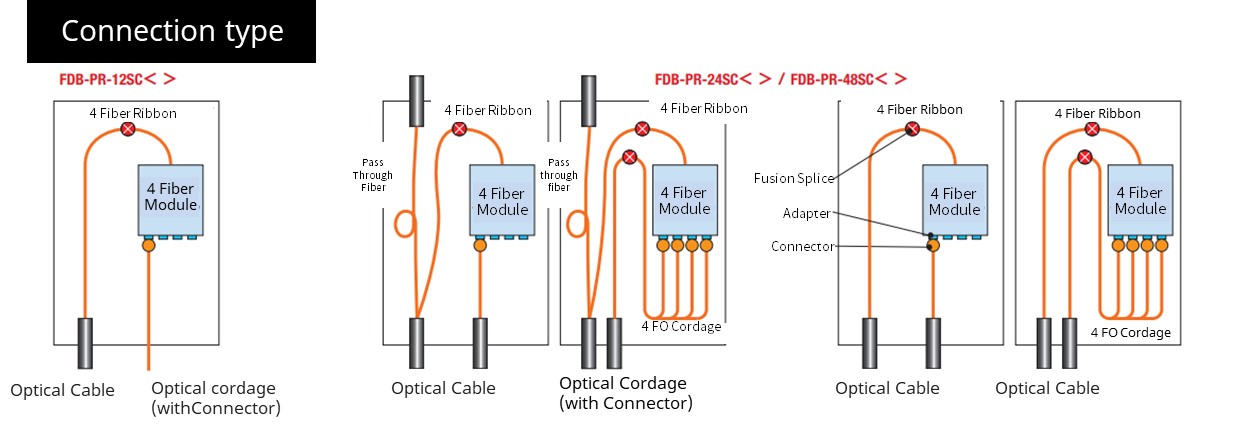

| Connection Type | SC connector | |||
| Adapter Capacity | Max 12 | Max 24 | Max 48 | |
| 4FO Module | Module Capacity | Max 3 | Max 6 | Max 12 |
| Pre-Installed Fiber | 4 Fiber Ribbon | |||
| Fiber Capacity | 4 Fiber Ribbon | 12 fibers | 48 fibers | 96 fibers |
| Number of Pass Through Fiber | – | 100 (*2) | ||
| Dimension(mm) | W148 x H208 x D59 | W268 x H328 x D99 | W328 x H328 x D99 | |
| Mounting Hole Position(mm) | W131 x H191, 4holes(Φ6) | W251 x H311, 4holes(Φ6) | W311 x H311, 4holes(Φ6) | |
| Applicable Cable | Input | Round cable Φ11 or less | Round cable Φ17 or less (3pcs) | |
| Output | 2mm cord, 2mm width flat outdoor or indoor cable | SC connectorized cord cables Φ15 or less (6pcs), 2mm cord, 2mm width flat outdoor or indoor cable | ||
| Weight (kg) | Approx. 1 | Approx. 3.5 | Approx. 4 | |
| Optional Item | 4FO module | |||
(*1) Please specify number or pre-installed 4FO module, (*2) Single side and both side branch of fiber are available.
