Optical Termination Box
FDB-FR Series

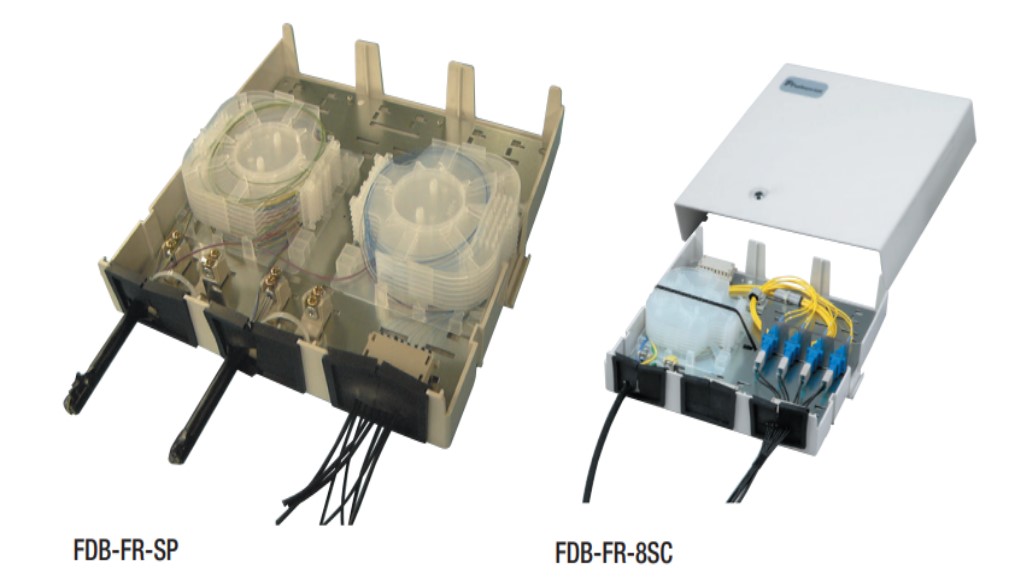

The FDB-FR Series is a rainproof optical termination box designed for outdoor use. It can be mounted on outdoor walls and features easily removable parts. Optional cable clamps can be added for organization. The top cover can be modified to allow cable installation from the top, but it becomes suitable for indoor use only. The box is equipped with a lockable door.
Optical Termination Box (Outdoor Use)
FDB-FR Series
The FDB-FR Series is designed for connecting outdoor cables as well as indoor cables. It is intended to be mounted on a wall.
Features
■Rainproof, mountable on outdoor walls
■Parts can be easily removed as necessary.
Applications
■Wall mount
■Outdoor(Under eaves) or Indoor
| Type No | FDB-FR-SP | FDB-FR-OA | FDB-FR-8SC | FDB-FR-16SC | FDB-FR-8LC | FDB-FR-16LC | |

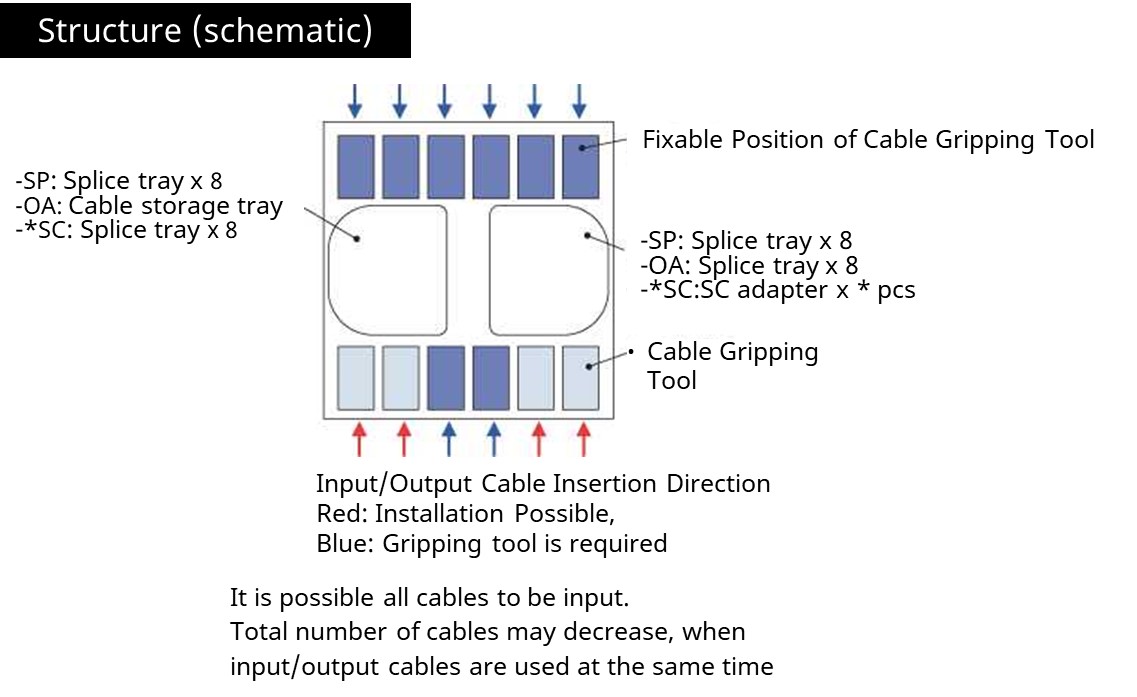

| Cable Insertion Direction | Top and Bottom (Only bottom for outdoor use) | ||||||

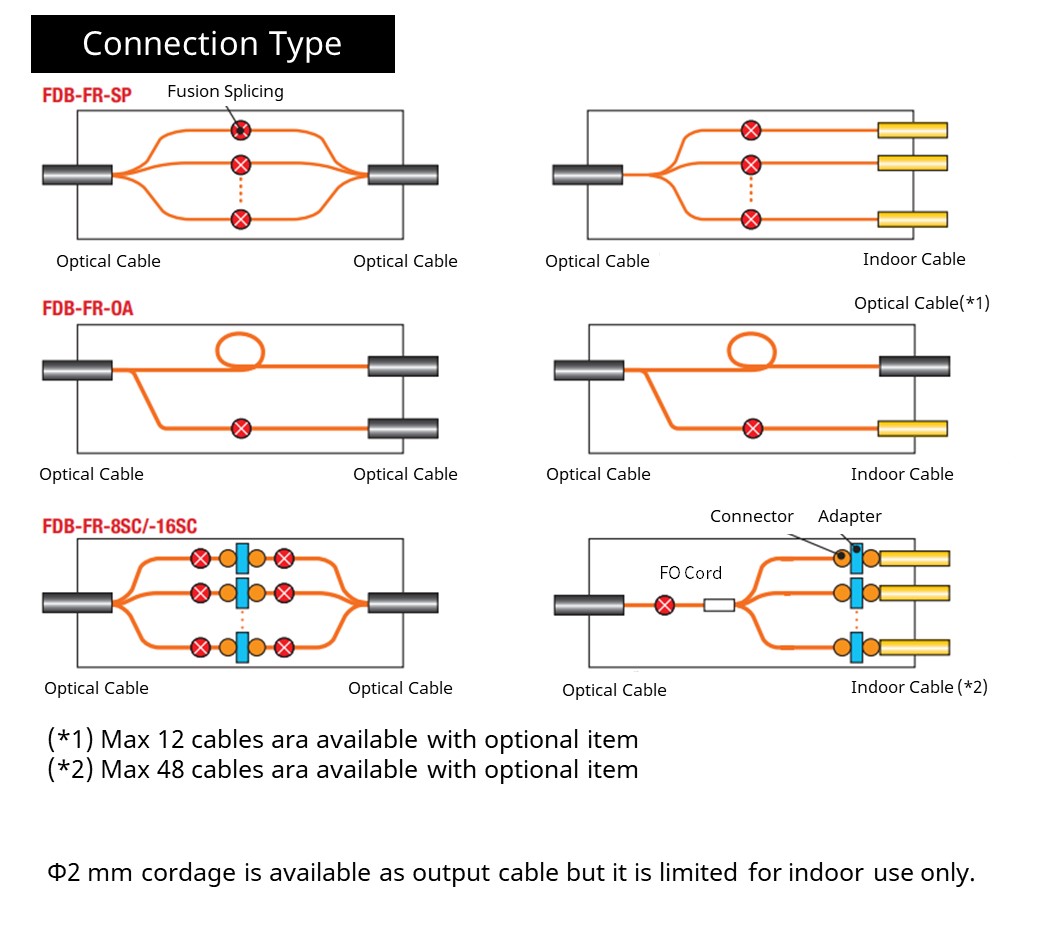

| Connection Type | Fusion splice | SC connector | LC connector | ||||
| Number of Adapters | None | 8 | 16 | 8 | 16 | ||
| Fiber Capacity | Single Fiber (0.25 mm) | 64 | 32 | 32 | 32 | 32 | 32 |
| Single Fiber (0.9 mm) | 64 | 32 | 32 | 32 | 32 | 32 | |
| 4 Fiber Ribbon | 128 | 64 | 64 | 64 | 64 | 64 | |
| Number of Pass Through Fiber (4 Fiber Ribbon ) | – | 200 (*1) | – | – | – | – | |
| IP Rating | IPX3 (JIS C 0920) | ||||||
| Dimensions (mm) | W323 x H330 x D64 | ||||||
| Mounting Hole Position (mm) | W280 x H270, 4holes(Φ7.5) | ||||||
| Applicable Cable | Input | Round cable Φ 13.5 mm or less (1pc) or 2mm width flat outdoor or indoor cable (8pcs) | |||||
| Output | Round cable Φ 13.5 mm or less (1pc), 2mm cord (16pcs) or 2mm width flat outdoor or indoor cable (16pcs) | ||||||
| Weight (kg) | Approx. 2 | ||||||
| Optional Item | FDB-FR-OP(Cable expansion kit) | ||||||
(*1) Single side and both side branch of fiber are available
