FAST™ Plus Connector
Fujikura FAST™ Plus is a series of field-installable connector which comes with an angled maintenance-free cleaver to achieve > 60 dB return loss. FAST™ Plus Connector is a factory pre-polished, Next Gen field-installable connector that adopted Hybrid Matching Gel, Maintenance Free Cleaver and has high reliability and long-term performance stability.
FAST™-Plus Connector
FAST™-Plus introduces a special cleave tool, maintenance free cleaver and a new type of index matching material, called ‘solid gum’ which is combined with the existing index matching gel.
Due to the blade design and operation, the maintenance free cleaver produces a highly repeatable and high-quality fibre cleave condition which enables an exceptional ‘first time pass’ connection; meaning an OPEX reduction in customer site revisits. Due to the fact Fujikura supply the maintenance free cleaver as a pre-packaged accessory with every box of FAST™-PLUS; the CAPEX normally associated with the use of a high precision cleave tool is therefore completely negated.
In conclusion, the FAST™ PLUS product range will benefit operators in their FTTH networks builds, especially in their access network where speed, accuracy and repeatable good results matter.

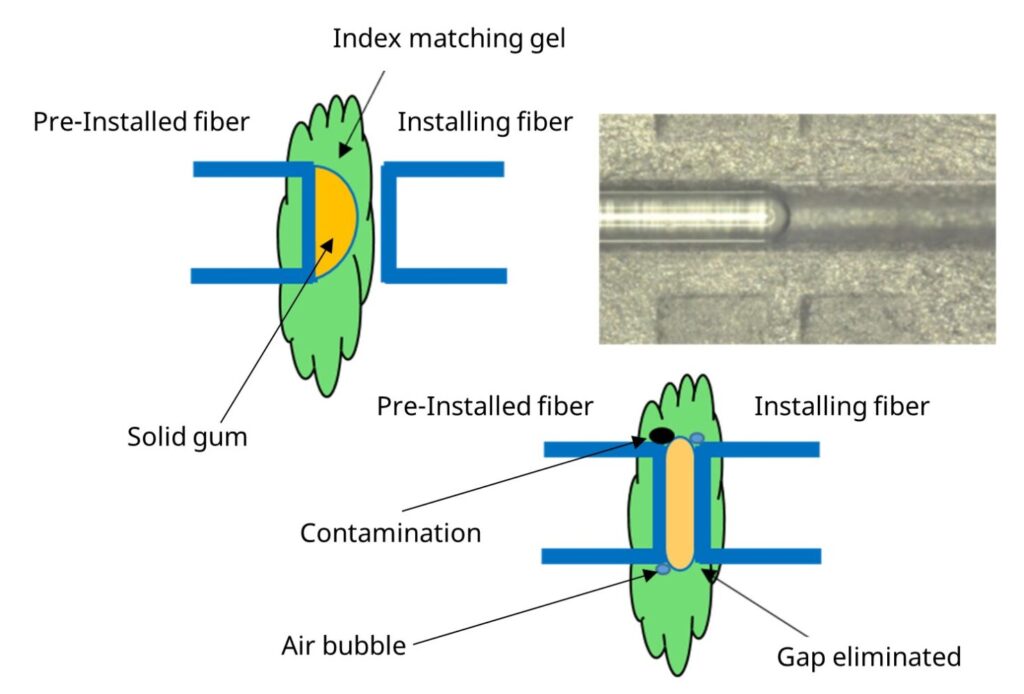

Hybrid Matching material
FAST™-Plus connector comes with a new type of index matching material, called ‘solid gum’ which is combined with the existing index matching gel. This technology fills tiny gaps between the pre-installed fiber and the installing fiber. On top of that, it prevents air bubbles and contaminations from moving.

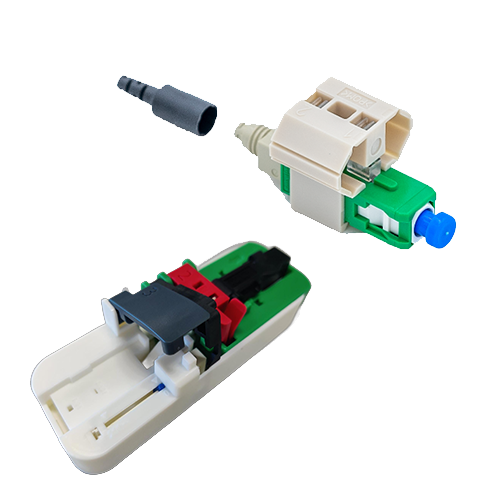

Maintenance-Free Cleaver
Feature
・Complementary, comes with every 100 connectors
・No cleaver investment needed, CAPEX reduction
・Easy to operate
・Every cleave is a good cleave
Fiber end face

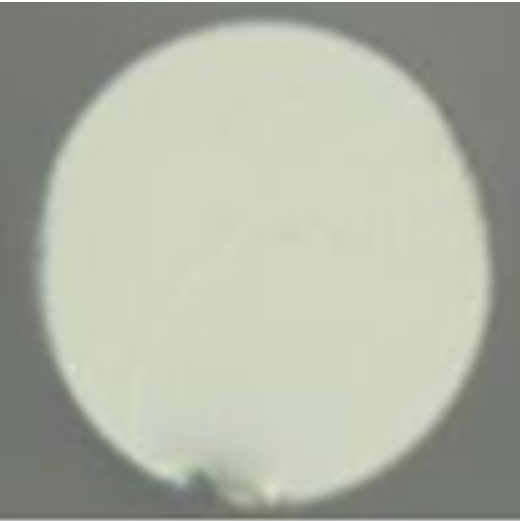

Good cleave

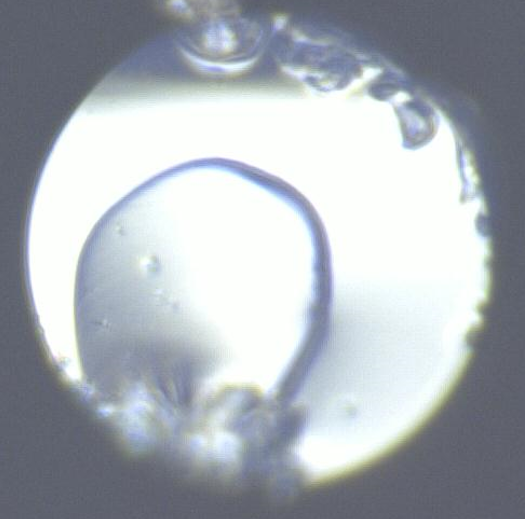

Bad cleave
Specifications
| Applicable Fiber/Cable | 0.25mm fiber (240~265µm), 0.9mm fiber (850~950µm), 2mm cord, 3mm cord | ||||
| Connector | SC, LC | ||||
| Fiber | SM*1 | MM(OM1)*2 | MM(OM2)*3 | MM(OM3)*4 | |
| Polishing | UPC | APC | PC | ||
| Housing Color | Blue | Green | Beige | Black | Aqua |
| Insertion Loss*5 | ≦0.5 dB | ≦0.6 dB | ≦0.4 dB | ||
| Return Loss*5,6 | ≧45 dB (Typical 50 dB) | ≧60 dB (Typical 65 dB) | ― | ||
*1 :SM ITU-T G. 625D, ITU-T G.657.A1. (ITU-T G.657.A2 type is also available, please contact with us.)
*2 : GI62.5/125, IEC60793-2-10A1b
*3 : GI50/125, IEC60793-2-10A1a.1
*4 : GI50/125, IEC60793-2-10A1a.2
*5 : with reference connector, SM@1310, 1550nm, MM@850, 1310nm
Ordering information
| Fiber | Polishing | FAST-SC-PLUS*8 | FAST-LC-PLUS*8 |
| SM | UPC | FAST-SC-PLUS-UPC-A1-ALL | FAST-LC-PLUS-UPC-A1-ALL |
| APC | FAST-SC-PLUS-APC-A1-ALL | FAST-LC-PLUS-APC-A1-ALL | |
| MM(OM1) | PC | FAST-SC-PLUS-GI6-ALL | FAST-LC-PLUS-GI6-ALL |
| MM(OM2) | PC | FAST-SC-PLUS-GI5-ALL | FAST-LC-PLUS-GI5-ALL |
| MM(OM3) | PC | FAST-SC-PLUS-10G-ALL | FAST-LC-PLUS-10G-ALL |
Assembly manual
| FAST-SC-PLUS | FAST-LC-PLUS |
| FAST-SC-PLUS |
| FAST-LC-PLUS |
