Compact Splitter Module
FSC114 Series
The FSC114 Series is a compact splitter module that can be installed in unused spaces of housing or on indoor walls. It supports both UPC and APC connector polishing. There is also a variant with a magnet base for flexible vertical and horizontal positioning.
Compact splitter module FSC114 Series
■ Installable in unused spaces of housing or on indoor wall.
■ Supports connector polishing of both UPC and APC
■ Additionally, there is a variant equipped with a magnet base for mounting on the FSC114 body, enabling both vertical and horizontal positioning.
■FSC114 Series
1×4 Splitter Module
(UPC (top), APC (bottom))
1×8 Splitter Module
(UPC (top), APC (bottom))
Magnet Base Mounting Example
Vertical
Horizontal
Magnet base body
Vertical
Magnet base body
Horizontal
Magnet base body

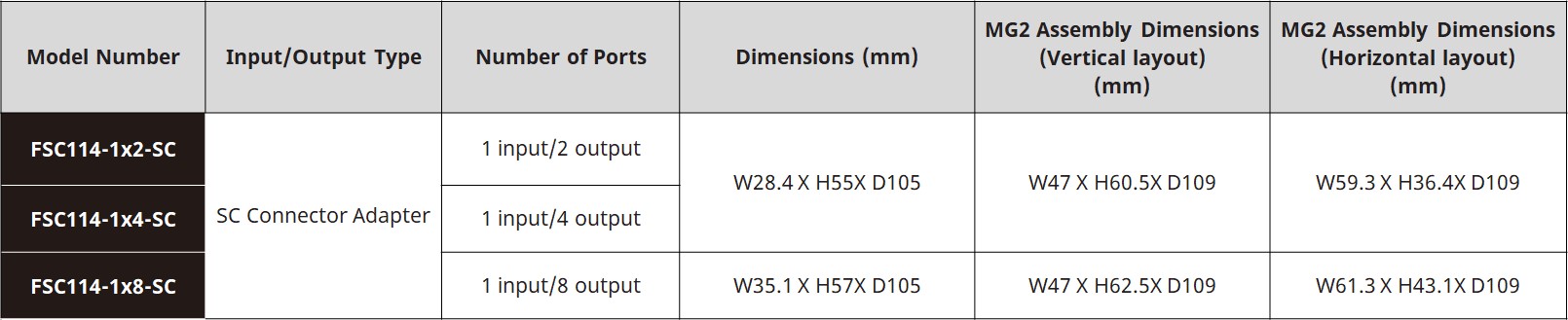

■FSC114 Series Lineup

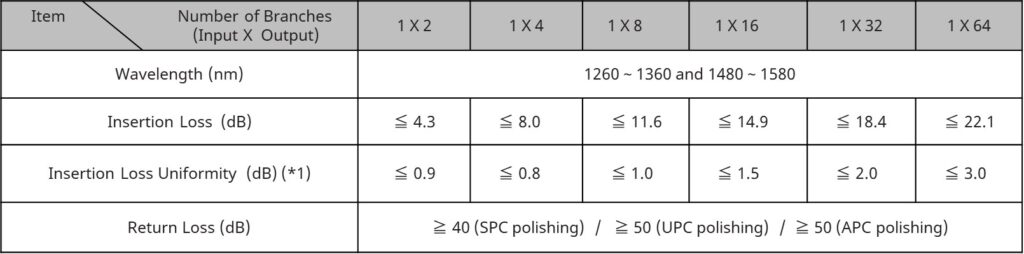

Splitter Module Common Specifications • Optical characteristics
(*1) Loss uniformity in the table does not include input/output connector loss.
